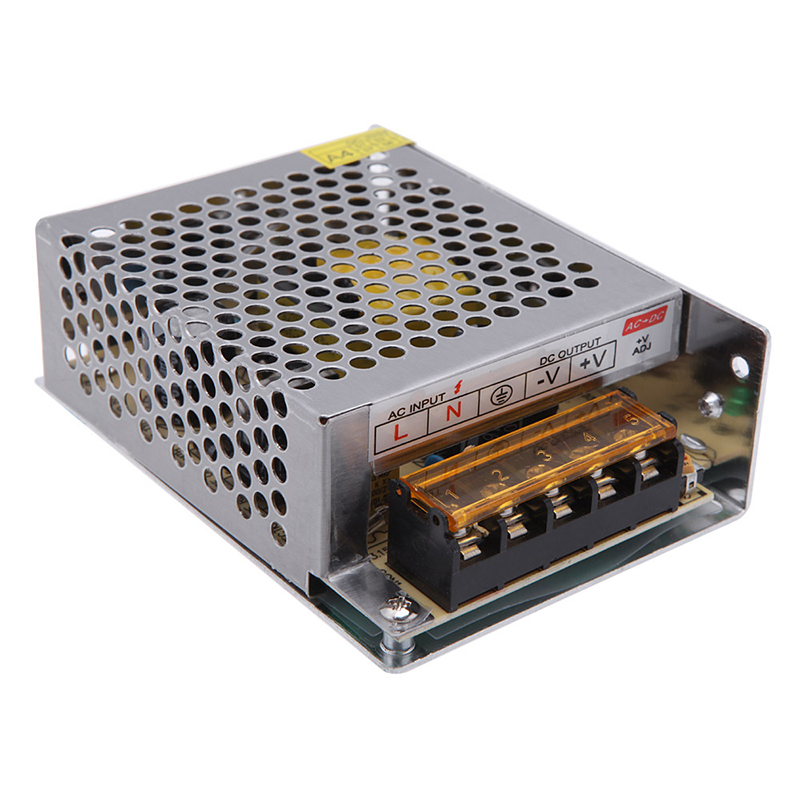

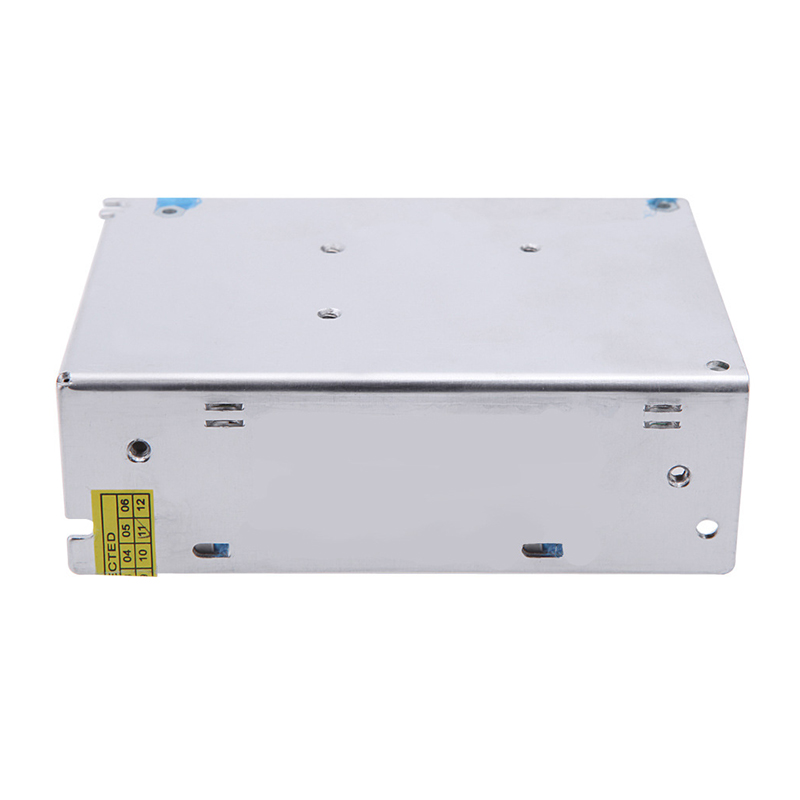

AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip

    Buy cheap AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip from wholesalers

    Buy cheap AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip from wholesalers
    • Buy cheap AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip from wholesalers
    • Buy cheap AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip from wholesalers

    AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip

    Ask Lasest Price
    Brand Name :
    Model Number : S-50-5-10A
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip

    Model

    S-50-5-10A

    AC input voltage range(V)

    AC 100-240V

    Input current(A)

    2.17A/115VAC;1.08A/230VAC

    Frequency (Hz)

    50/60Hz

    Efficiency

    89%(230VACFull Load)

    Inrush current(A)

    cold start 20A/115V AC 40A/230VAC

    Leakage current(mA)

    <3.5mA/240VAC

    Output Voltage(V)

    +5VDC

    Voltage Regulation

    ±10%

    Output Current(A)

    10A

    Current Range (A)

    0-10A

    Rated Power(W)

    50W

    Start time, hold-up time(ms)

    300ms/230VAC 800ms,/115VAC at full load

    Rise time(ms)

    50ms at Full Load

    Ripple/Noise(MVP-p)

    120mVp-p

    working Temperature (°C)

    -10 centidegree to+60 centidegree

    Storage Temperature(°C)

    -20 centidegree to+85 centidegree

    Humidity

    20% to90%RH non condensing

    Over voltage Protection

    >115%-135% Rated output voltage

    Over load Protection

    >105%-150% Auto recovery

    Short circuit Protection

    Latched

    Size L*W*H(mm)

    110*78*35

    Weight

    195g

    Product Description

    AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip


    AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip

    AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip

    AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip

    AC 100V 240V to DC 5V 10A 50W Power Supply Regulator Switching Power Transformer Adapter For LED Light Strip

    Specification

    item

    value

    Place of Origin

    China


    Guangdong

    Brand Name

    Megbox

    Model Number

    S-50-5-10A

    Output Power

    50W

    Output Type

    Single

    Input Voltage

    AC100-240V

    Output Voltage

    5V

    Output Frequency

    50~60(HZ)

    Output Current

    0-10(A)

    Product Name

    Swtiching Power

    Application

    LED Strip

    Warranty

    2 Years

    Certification

    CE

    Type

    Constant Voltage

    Efficiency

    95%

    Weight

    0.3kg

    Size

    110*78*35(mm)

    Protections

    OPP OVP SCP OCP

    Name

    AC DC Power Module Converter
