    20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver

    Ask Lasest Price
    Brand Name :
    Model Number : S-20-5
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver



    AC to DC 5V 20W 4A Metal Shell Indoor Low Voltage Switching Power Supply

    Model

    S-20-5

    AC input voltage range(V)

    AC100-240V

    AC Input current(max)

    0.36A /AC220V;0.72A/AC110V

    Frequency (Hz)

    50/60Hz

    Efficiency

    85% Typ(230VACFull Load)

    Inrush current(A)

    Cold-start 20A/230V

    Leakage current(mA)

    <3mA/240VAC

    Output Voltage(V)

    5V DC

    Voltage Range

    5V±5%

    Output Current(A)

    4A

    Current Range (A)

    0-4A

    Rated Power(W)

    20W

    Start time,hold-up time(ms)

    Ton≤1000ms,Td≥20ms @230Vac Full Load

    Rise time(ms)

    Typ:20ms @230Vac Full Load

    Ripple/Noise(mVp-p)

    120mVp-p

    working Temperature (°C)

    -40°C - +65°C(refer derating curve)

    Storage Temperature(°C)

    -20°C - +60°C

    Humidity

    20% - 90% RH non condensing

    Over voltage Protection

    >115%-135% Rated output voltage

    Over load Protection

    >105%-150% Auto recovery

    Short circuit Protection

    Latched

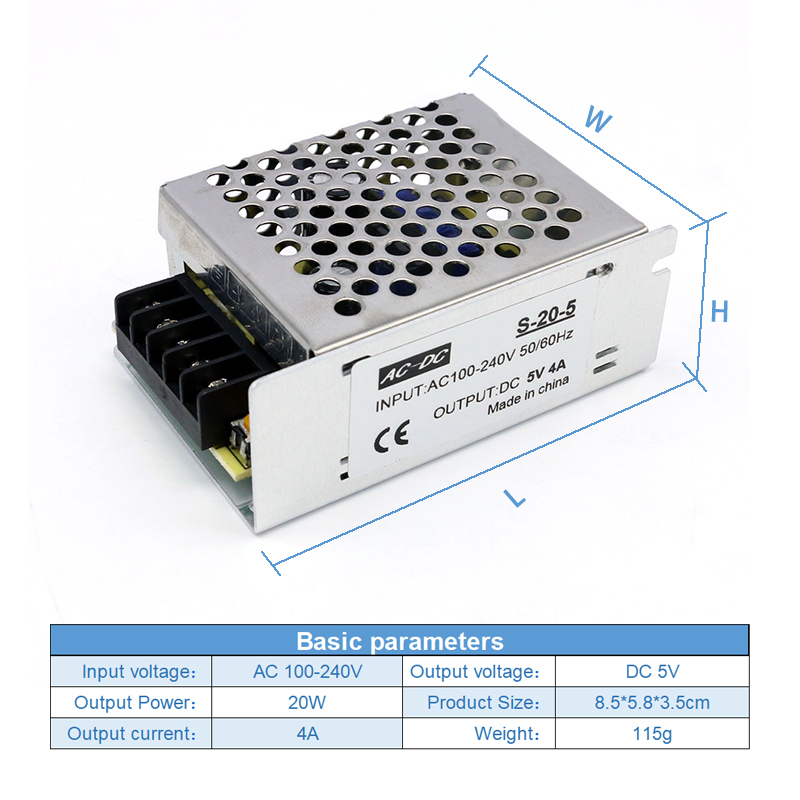

    Size L*W*H(cm)

    8.5*5.8*3.5cm

    Weight

    115g

    Product Description

    20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver

    20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver

    20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver

    20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver

    20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver

    Specification

    item

    value

    Place of Origin

    China


    Guangdong

    Brand Name

    MegBox

    Model Number

    S-20-5

    Output Power

    20W

    Output Type

    Single

    Input Voltage

    AC100-240V

    Output Voltage

    5V

    Output Frequency

    50-60Hz

    Output Current

    4A

    Product Name

    Swtiching Power

    Application

    LED Strip

    Warranty

    2 Years

    Certification

    CE

    Type

    Constant Voltage

    Efficiency

    85%

    Weight

    0.12kg

    Size

    85*58*35mm

    Protections

    OPP OVP SCP OCP

    Name

    AC DC Power Module Converter
