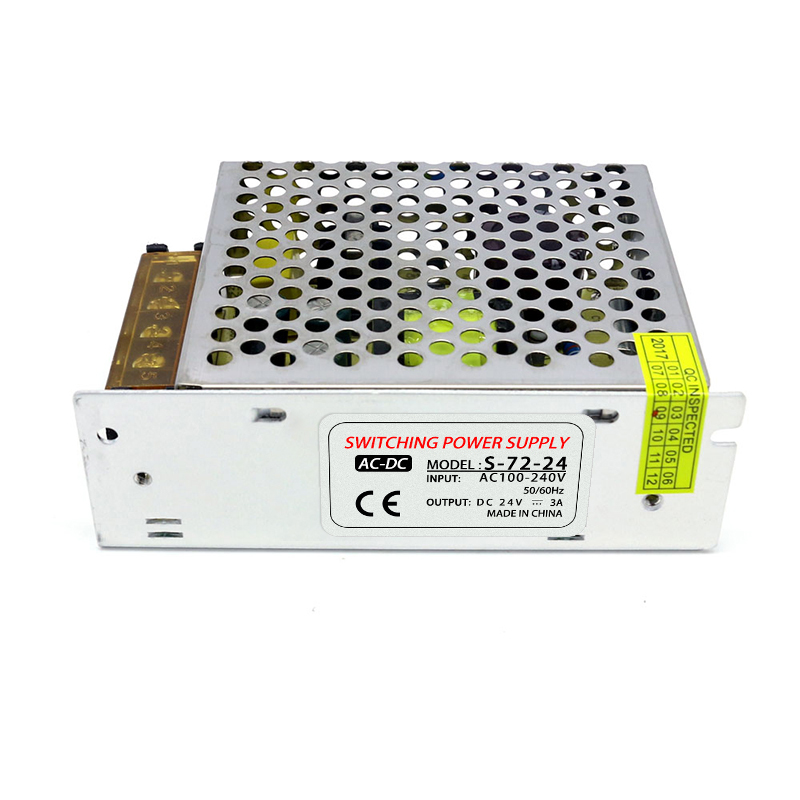

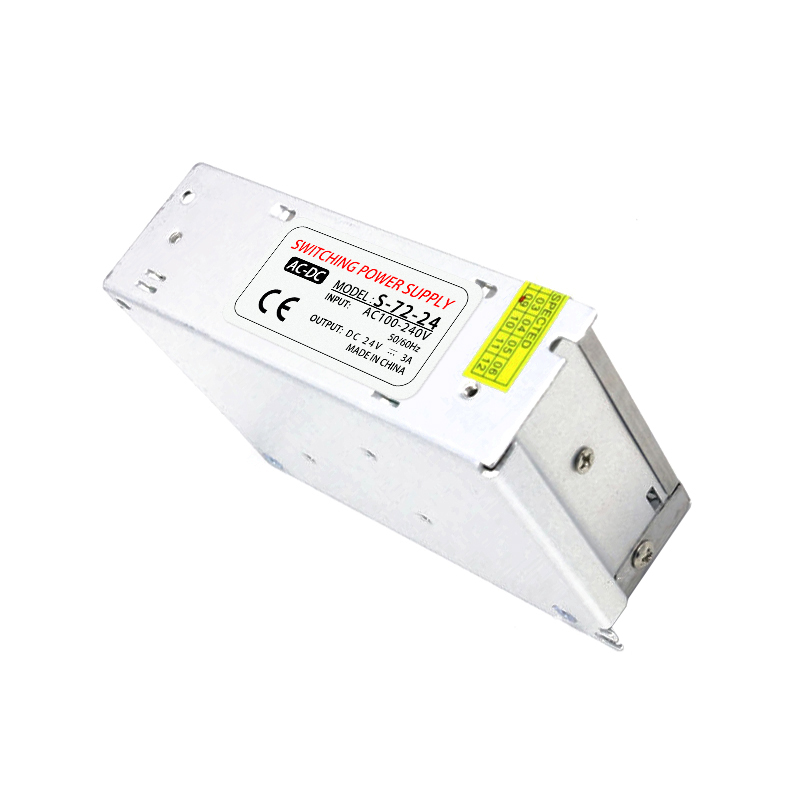

Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case

    Buy cheap Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case from wholesalers

    Buy cheap Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case from wholesalers
    • Buy cheap Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case from wholesalers
    • Buy cheap Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case from wholesalers

    Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case

    Ask Lasest Price
    Brand Name :
    Model Number : S-72-24
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case

    Ac 220v To Dc 24v 3a 72w Power Supply Wide Voltage Aluminium Case Switching Power Supplies



    Title goes here.

    ◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

    ◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.


    Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case

    Thickened metal shell

    ◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

    ◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

    Featured Components

    High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;

    Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case

    Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case

    Suitable for a variety of electronic devices

    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

    Model

    S-72-24

    AC input voltage range(V)

    AC 100-240V

    Input current(A)

    0.62A/115VAC;0.31A/230VAC

    Frequency (Hz)

    50/60Hz

    Efficiency

    89%(230VACFull Load)

    Inrush current(A)

    cold start 20A/115V AC 40A/230VAC

    Leakage current(mA)

    <3.5mA/240VAC

    Output Voltage(V)

    +24V DC

    Voltage Regulation

    ±10%

    Output Current(A)

    3A

    Current Range (A)

    0-3A

    Rated Power(W)

    72W

    Start time, hold-up time(ms)

    300ms/230VAC 800ms,/115VAC at full load

    Rise time(ms)

    50ms at Full Load

    Ripple/Noise(MVP-p)

    120mVp-p

    working Temperature (°C)

    -10 centidegree to+60 centidegree

    Storage Temperature(°C)

    -20 centidegree to+85 centidegree

    Humidity

    20% to90%RH non condensing

    Over voltage Protection

    >115%-135% Rated output voltage

    Over load Protection

    >105%-150% Auto recovery

    Short circuit Protection

    Latched

    Size L*W*H(mm)

    110*78*36

    Weight

    240g

    Easy to install and easy to use

    Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case

    Product Description

    Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case


    Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case

    Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case

    Wide Voltage Switch Power Supply AC 220V To DC 24v 3a 72w With Aluminium Case

    Specification

    item

    value

    Place of Origin

    China


    Guangdong

    Brand Name

    Megbox

    Model Number

    S-72-24

    Output Power

    72W

    Output Type

    Single

    Input Voltage

    AC100V-240V

    Output Voltage

    24V

    Output Frequency

    50-60Hz

    Output Current

    3A

    Product Name

    Chassis Switching Power Supply

    Application

    LED Lighting

    Warranty

    2 Years

    Certification

    CE

    Type

    AC DC Power Module Converter

    Efficiency

    89%

    Weight

    240g

    Size

    L110*W78*H36(mm)

    Protection

    OCP OVP SCP OPP

    Material

    Metal Shell
