Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W

    Buy cheap Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W from wholesalers

    Buy cheap Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W from wholesalers
    • Buy cheap Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W from wholesalers
    • Buy cheap Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W from wholesalers

    Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W

    Ask Lasest Price
    Brand Name :
    Model Number : S-60-24
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W

    Regulated Switching Power Supply Converter AC 100-240V to DC 24V 2.5A 60W LED Driver Aluminum Case Transformer


    ◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

    ◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

    Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W

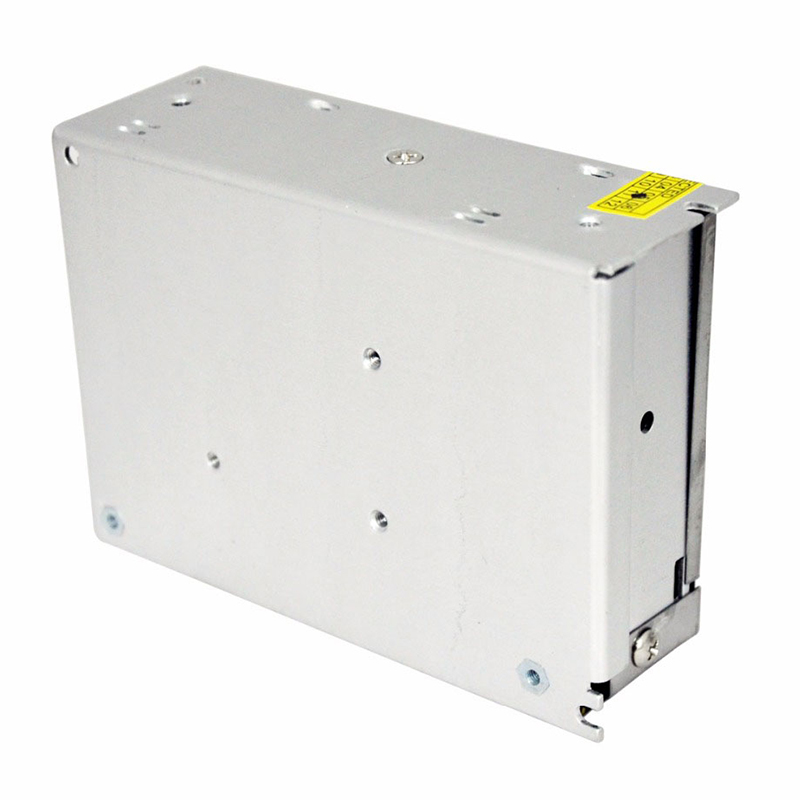

    Thickened metal shell

    ◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

    ◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

    Featured Components

    High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;

    Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W

    Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W

    Suitable for a variety of electronic devices

    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

    Model

    S-60-24

    DC output,current

    24V 2.5A

    Wave and noise

    100mvp-p

    Inlet stability

    ±0.5%

    Load stability

    ±0.5%

    Efficiency

    87%

    Adjustable range for DC voltage

    ±10%

    Input current

    12.0A/110V 1.0A/230VAC

    AC input voltage range

    90~260VAC , 47~63Hz , 240~373VDC

    AC Inrush current

    Cold-start current 15A/115VAC 30A/230V

    Setup, rise, hold up time

    200ms,100ms,30ms

    Withstand voltage

    I/P-O/P: 1.5KVAC; I/P-F/G: 1.5KVAC; O/P-F/G: 0.5KVAC (1 Min)

    Isolation resistance

    I/P-O/P, I/P-F/G, O/P-F/G, 500VDC/100MΩ

    Working temperature and humidity

    `-10°C~+60°C, 20%~90%RH

    EMC standards

    GB9254 EN55022 ClassA

    Over voltage Protection

    >115%-135%Rated output voltage

    Over load Protection

    >105%-150%Auto recovery

    Short circuit Protection

    Latched

    Size L*W*H(mm)

    110 *78*36mm

    Weight

    240g

    Easy to install and easy to use

    Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W

    Product Description

    Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W

    Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W

    Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W

    Customized Regulated Switching Power Supply AC 100V 240V To DC 24V 2.5A 60W

    Specification

    item

    value

    Place of Origin

    China


    Guangdong

    Brand Name

    Megbox

    Model Number

    S-60-24

    Output Power

    60W

    Output Type

    Single

    Input Voltage

    AC100V-240V

    Output Voltage

    24V

    Output Frequency

    50-60Hz

    Output Current

    2.5A

    Product Name

    Chassis Switching Power Supply

    Application

    LED Lighting

    Warranty

    2 Years

    Certification

    CE

    Type

    AC DC Power Module Converter

    Efficiency

    83%

    Weight

    240g

    Size

    L110*W78*H36(mm)

    Protection

    OCP OVP SCP OPP

    Material

    Metal Shell
