360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power

    Buy cheap 360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power from wholesalers

    Buy cheap 360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power from wholesalers
    • Buy cheap 360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power from wholesalers
    • Buy cheap 360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power from wholesalers

    360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power

    Ask Lasest Price
    Brand Name :
    Model Number : S-360-12
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power

    AC 100V 240V To DC 12V 360W Power Supply 30A LED Lighting Universal Voltage Regulator Drive Power



    DC 12V 360W 30A AC to DC Indoor LED Lighting Switching Power Supply Transformer Drive Adapter

    ◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

    ◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

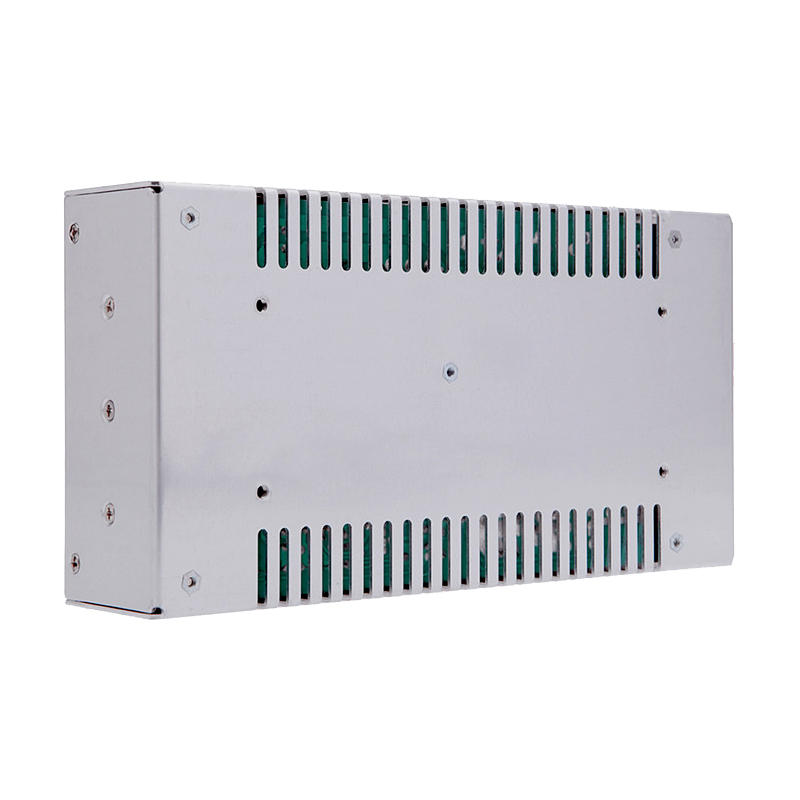

    Thickened metal shell

    ◆The shell is made of high-quality metal material, which has good

    ◆It comes with built-in cooling fan and many holes on the metal case, which makes heat dissipation more efficient.

    Featured Components

    High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;

    Suitable for a variety of electronic devices

    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

    Model

    S-360-12

    AC input voltage range(V)

    AC 110/220V by switch

    AC Input current(max)

    6A /115V,3A /230V

    Frequency (Hz)

    50Hz/60Hz

    Efficiency

    90% Typ(230VACFull Load)

    Inrush current(A)

    Cold-start 20A/230V

    Leakage current(mA)

    <3mA/240VAC

    Output Voltage(V)

    +12VDC

    Voltage Regulation

    +10%,-10%

    Output Current(A)

    30A

    Current Range (A)

    0-30A

    Rated Power(W)

    360W

    Start time,hold-up time(ms)

    Ton≤1000ms,Td≥20ms @230Vac Full Load

    Rise time(ms)

    Typ:20ms @230Vac Full Load

    Ripple/Noise(mVp-p)

    120mVp-p

    working Temperature (°C)

    -40°C - +65°C(refer derating curve)

    Storage Temperature(°C)

    -20°C - +60°C

    Humidity

    20% - 90% RH non condensing

    Over voltage Protection

    >115%-135% Rated output voltage

    Over load Protection

    >105%-150% Auto recovery

    Short circuit Protection

    Latched

    Size L*W*H(mm)

    215*113*50

    Weight

    800g

    Easy to install and easy to use

    360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power

    Product Description

    360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power

    360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power

    360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power

    360W 30A Switch Power Supply For LED Lighting Universal Voltage Regulator Drive Power

    Specification

    item

    value

    Place of Origin

    China


    Guangdong

    Brand Name

    Megbox

    Model Number

    S-360-12

    Output Power

    360W

    Output Type

    Single

    Input Voltage

    AC110/220V±15%

    Output Voltage

    12V

    Output Frequency

    50-60Hz

    Output Current

    30A

    Product Name

    Chassis Switching Power Supply

    Application

    LED Lighting

    Warranty

    2 Years

    Certification

    CE

    Type

    AC DC Power Module Converter

    Efficiency

    90%

    Weight

    800g

    Size

    L215*W113*H50(mm)

    Protection

    OCP OVP SCP OPP

    Protections

    Short Circuit Overtemp Overload Overvolt
