AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz

    Buy cheap AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz from wholesalers

    Buy cheap AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz from wholesalers
    • Buy cheap AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz from wholesalers
    • Buy cheap AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz from wholesalers

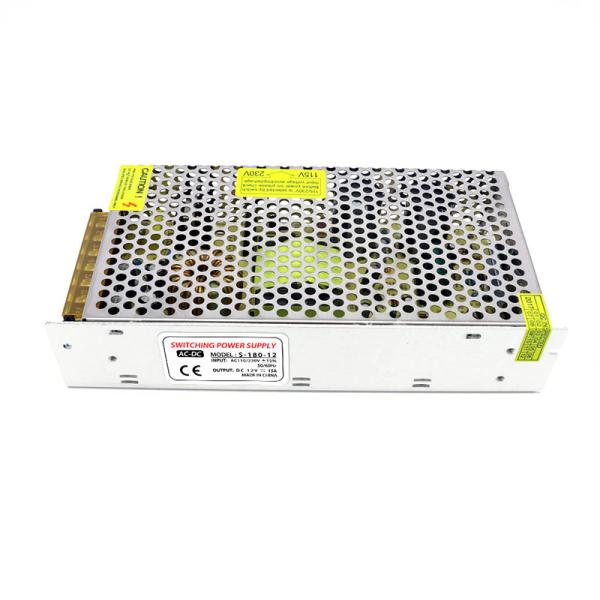

    AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz

    Ask Lasest Price
    Brand Name :
    Model Number : S-180-12
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz

    DC 12V 180W 15A LED Lighting Universal Voltage Regulator Drive Power AC 100V 240V to DC Switching Power Converter



    DC 12V 180W 15A AC to DC Indoor LED Lighting Switching Power Supply Transformer Drive Adapter

    ◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

    ◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

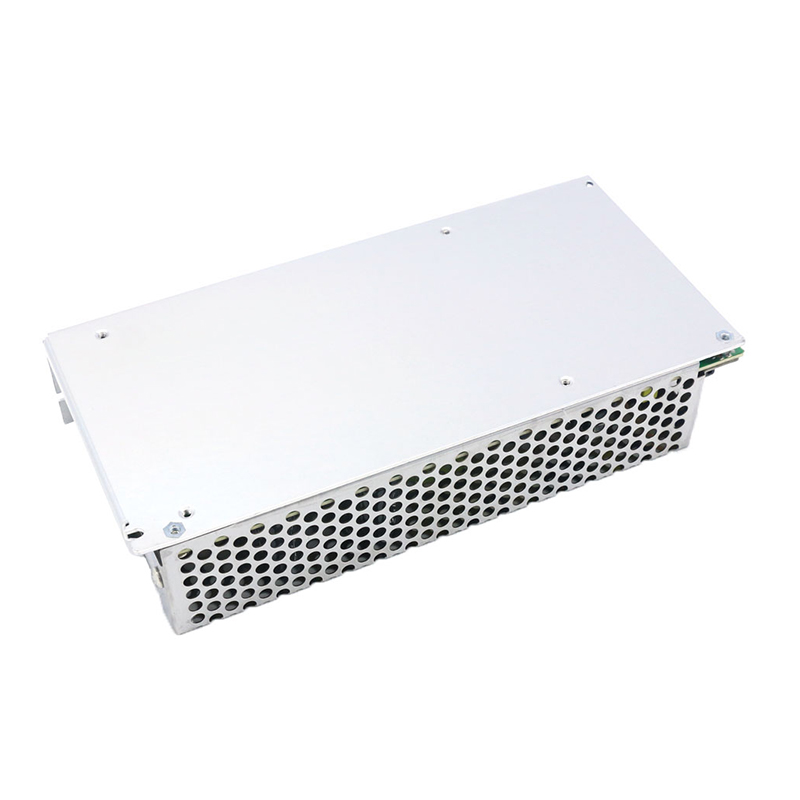

    Thickened metal shell

    ◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

    ◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

    Featured Components

    High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;

    Suitable for a variety of electronic devices

    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

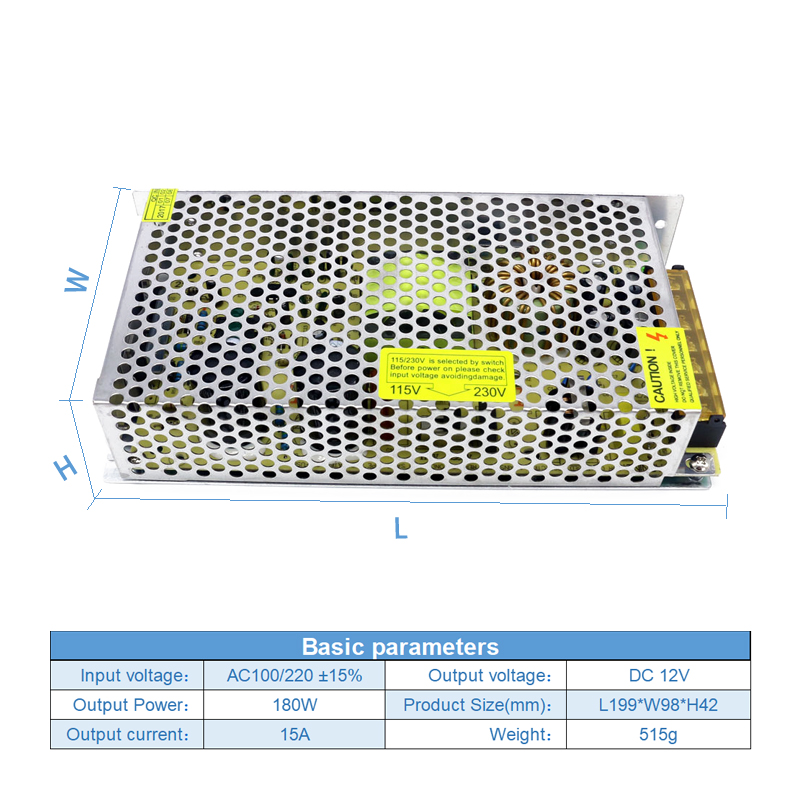

    Model

    S-180-12

    AC input voltage range(V)

    AC110/220V±15%

    AC Input current(max)

    4A /AC220V;8A/AC110V

    Frequency (Hz)

    50/60Hz

    Efficiency

    85% Typ(230VACFull Load)

    Inrush current(A)

    Cold-start 20A/230V

    Leakage current(mA)

    <3mA/240VAC

    Output Voltage(V)

    12V DC

    Voltage Regulation

    +10%,-10%

    Output Current(A)

    15A

    Current Range (A)

    0-15A

    Rated Power(W)

    180W

    Start time,hold-up time(ms)

    Ton≤1000ms,Td≥20ms @230Vac Full Load

    Rise time(ms)

    Typ:20ms @230Vac Full Load

    Ripple/Noise(mVp-p)

    120mVp-p

    working Temperature (°C)

    -40°C - +65°C(refer derating curve)

    Storage Temperature(°C)

    -20°C - +60°C

    Humidity

    20% - 90% RH non condensing

    Over voltage Protection

    >115%-135% Rated output voltage

    Over load Protection

    >105%-150% Auto recovery

    Short circuit Protection

    Latched

    Size L*W*H(mm)

    199*98*42

    Weight

    515g

    Easy to install and easy to use

    AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz

    Product Description

    AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz

    AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz

    AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz

    AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz

    AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz

    Specification

    item

    value

    Place of Origin

    China


    Guangdong

    Brand Name

    Megbox

    Model Number

    S-180-12

    Output Power

    180W

    Output Type

    Single

    Input Voltage

    AC110/220V±15%

    Output Voltage

    12V

    Output Frequency

    50-60Hz

    Output Current

    15A

    Product Name

    Chassis Switching Power Supply

    Application

    LED Lighting

    Warranty

    2 Years

    Certification

    CE

    Type

    AC DC Power Module Converter

    Efficiency

    85%

    Weight

    515g

    Size

    L199*W98*H42(mm)

    Protection

    OCP OVP SCP OPP

    Protections

    Short Circuit Overtemp Overload Overvolt


    Quality AC 100V 240V To DC Switch Power Supply DC 12V 180W 15A 50Hz 60Hz for sale
