DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power

    Buy cheap DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power from wholesalers

    Buy cheap DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power from wholesalers
    • Buy cheap DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power from wholesalers
    • Buy cheap DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power from wholesalers

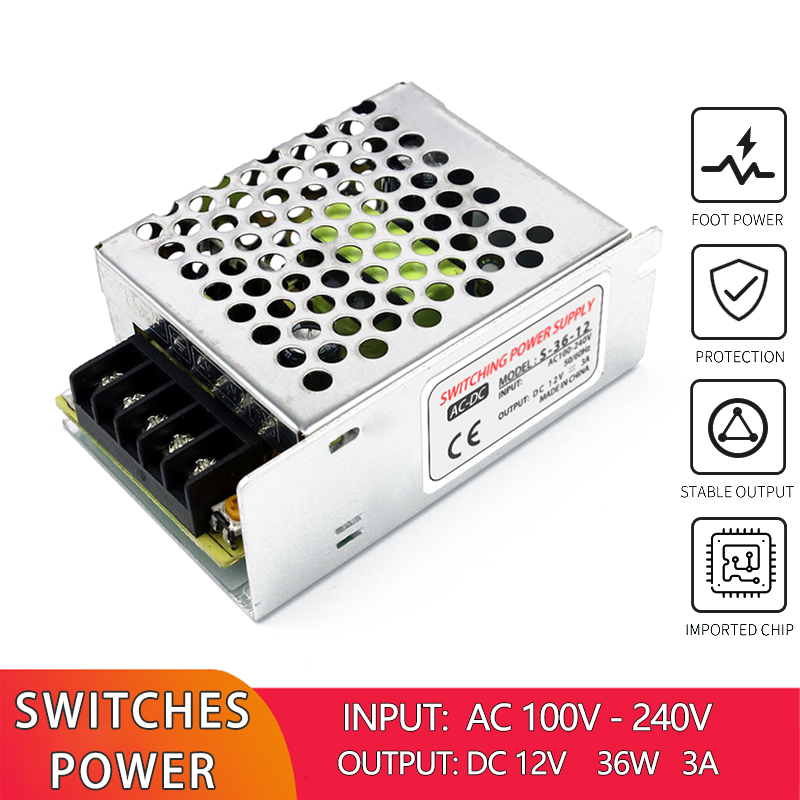

    DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power

    Ask Lasest Price
    Brand Name :
    Model Number : S-36-12
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power

    AC 100V 240V to DC Switching Power Supply DC 12V 36W 3A LED Lighting Voltage Regulator Drive Power


    AC to DC 12V 36W 3A LED Strip Driver Transformer

    ◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

    ◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.


    Thickened metal shell

    ◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance. ◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

    Featured Components

    High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;



    Suitable for a variety of electronic devices

    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

    Model

    S-36-12

    AC input voltage range(V)

    AC 100~240V

    AC Input current(max)

    0.8A /AC220V;1.6A/AC110V

    Frequency (Hz)

    50/60Hz

    Efficiency

    87% Typ(230VACFull Load)

    Inrush current(A)

    Cold-start 20A/230V

    Leakage current(mA)

    <3mA/240VAC

    Output Voltage(V)

    DC 12V

    Voltage Regulation

    DC 12V±0.5

    Output Current(A)

    3A

    Current Range (A)

    0-3A

    Rated Power(W)

    36W

    Start time,hold-up time(ms)

    Ton≤1000ms,Td≥20ms @230Vac Full Load

    Rise time(ms)

    Typ:20ms @230Vac Full Load

    Ripple/Noise(mVp-p)

    120mVp-p

    working Temperature (°C)

    -40°C - +65°C(refer derating curve)

    Storage Temperature(°C)

    -20°C - +60°C

    Humidity

    20% - 90% RH non condensing

    Over voltage Protection

    >115%-135% Rated output voltage

    Over load Protection

    >105%-150% Auto recovery

    Short circuit Protection

    Latched

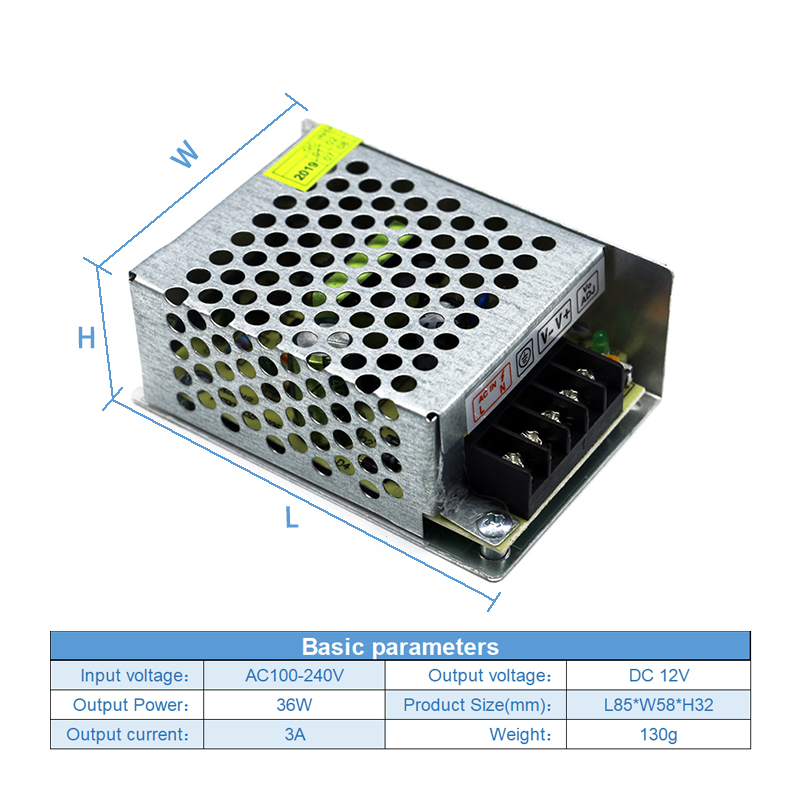

    Size L*W*H(cm)

    85*58*33mm

    Weight

    130g

    Easy to install and easy to use

    DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power

    Product Description

    DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power

    DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power

    DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power

    DC 12V 36W 3A Switch Power Supply For LED Lighting Voltage Regulator Drive Power

    Specification

    item

    value

    Place of Origin

    China


    Guangdong

    Brand Name

    Megbox

    Model Number

    S-36-12

    Output Power

    36W

    Output Type

    Single

    Input Voltage

    AC100-240V

    Output Voltage

    12V

    Output Frequency

    50-60Hz

    Output Current

    3A

    Product Name

    Chassis Switching Power Supply

    Application

    LED Lighting

    Warranty

    2 Years

    Certification

    CE

    Type

    AC DC Power Module Converter

    Efficiency

    87%

    Weight

    130g

    Size

    L85*W58*H32

    Protection

    OCP OVP SCP OPP

    Protections

    Short Circuit Overtemp Overload Overvolt
