Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting

    Buy cheap Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting from wholesalers

    Buy cheap Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting from wholesalers
    • Buy cheap Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting from wholesalers
    • Buy cheap Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting from wholesalers

    Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting

    Ask Lasest Price
    Brand Name :
    Model Number : S-10-5
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

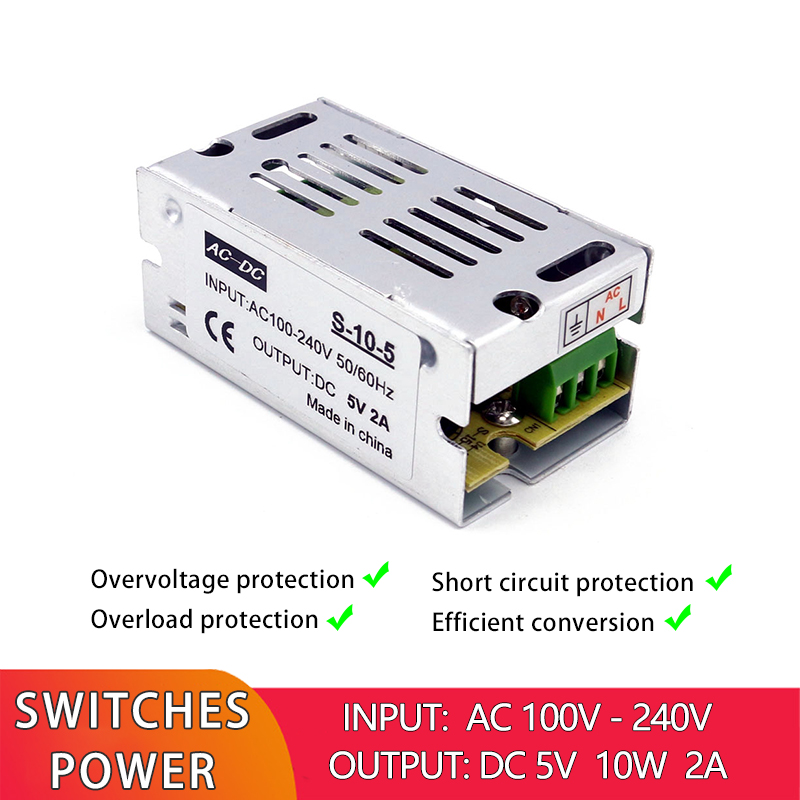

    Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting

    Mini Indoor Switching Power Supply AC100V 240V to DC 5V 10W 2A LED Light Adapter for Urban Lighting


    AC 100V 240V to DC 5V 10W 2A Metal Shell Indoor Constant Voltage Switching Power Transformer Adapter for LED Display Lights

    Model

    S-10-5

    AC input voltage range(V)

    AC100-240V

    AC Input current(max)

    0.22A /AC220V;0.45A/AC110V

    Frequency (Hz)

    50/60Hz

    Efficiency

    90% Typ(230VACFull Load)

    Inrush current(A)

    Cold-start 20A/230V

    Leakage current(mA)

    <3mA/240VAC

    Output Voltage(V)

    DC 5V

    Voltage Range

    5V±5%

    Output Current(A)

    2A

    Current Range (A)

    0-2A

    Rated Power(W)

    10W

    Start time,hold-up time(ms)

    Ton≤1000ms,Td≥20ms @230Vac Full Load

    Rise time(ms)

    Typ:20ms @230Vac Full Load

    Ripple/Noise(mVp-p)

    120mVp-p

    working Temperature (°C)

    -40°C - +65°C(refer derating curve)

    Storage Temperature(°C)

    -20°C - +60°C

    Humidity

    20% - 90% RH non condensing

    Over voltage Protection

    >115%-135% Rated output voltage

    Over load Protection

    >105%-150% Auto recovery

    Short circuit Protection

    Latched

    Size L*W*H

    L70*W40*H30mm

    Weight

    68g

    Product Description

    Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting

    Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting

    Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting

    Mini Indoor Switch Power Supply AC100V 240V To DC 5V 10W 2A For Urban Lighting

    Specification

    item

    value

    Place of Origin

    China


    Guangdong

    Brand Name

    Megbox

    Model Number

    S-10-5

    Output Power

    10W

    Output Type

    Single

    Input Voltage

    AC100-240V

    Output Voltage

    5V

    Output Frequency

    50-60Hz

    Output Current

    2A

    Product Name

    Swtiching Power

    Application

    LED Strip

    Warranty

    2 Years

    Certification

    CE

    Type

    Constant Voltage

    Efficiency

    90%

    Weight

    68g

    Size

    70*40*30mm

    Protections

    OPP OVP SCP OCP

    Name

    AC DC Power Module Converter
