Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V

    Buy cheap Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V from wholesalers

    Buy cheap Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V from wholesalers
    • Buy cheap Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V from wholesalers
    • Buy cheap Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V from wholesalers

    Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V

    Ask Lasest Price
    Brand Name :
    Model Number : S-800-12
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V

    800W 12V Switching Power Supply Aluminum Case with Fan 220V AC to DC 12V Converter Transformer LED Driver

    AC 220v to DC 12V 66.6A 80W High Power Universal Regulated Switching Power Supply Transformer Adapter LED Driver for LED Light Bar,CCTV Camera System, Radio

    About this project:
    ◆ Input: 170V/250V AC; Output: DC 12V 66.6A max. The output voltage is adjustable by 10%.
    ◆ Safety function: automatic overload cut-off, over-voltage cut-off, automatic thermal cut-off, short circuit protection.
    ◆ Voltage consistency: there is no voltage fluctuation during power-on, transmission, reception, and power-off.
    ◆ Built-in cooling fan, openings on the metal shell, more efficient heat dissipation.
    ◆ Suitable for LED strips, 3D printers, ham radio transceivers, CCTV cameras, audio amplifiers, wireless routers, ADSL Cats, HUB, audio/video power supplies. Indoor use only!
    Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V
    Thickened metal shell

    ◆ The shell is made of high-quality metal material with good pressure resistance. Heat dissipation is fast. Durable and Corrosion Resistant

    ◆ Built-in cooling fan, openings on the metal shell, more efficient heat dissipation.

    Featured Components
    Selected high-quality components, sufficient power. Stable output, energy saving and safer
    Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V
    Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V
    Suitable for a variety of electronic devices
    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
    Easy to install and easy to use
    Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V
    Model
    S-800-12
    AC input voltage range(V)
    AC 170~250V
    AC Input current(max)
    16.8A /AC220V;
    Frequency (Hz)
    50/60Hz
    Efficiency
    84% Typ(230VACFull Load)
    Inrush current(A)
    Cold-start 20A/230V
    Leakage current(mA)
    <3mA/240VAC
    Output Voltage(V)
    DC12V
    Voltage Regulation
    DC12V±0.5
    Output Current(A)
    66.6A
    Current Range (A)
    0-66.6A
    Rated Power(W)
    800W
    Start time,hold-up time(ms)
    Ton≤1000ms,Td≥20ms @230Vac Full Load
    Rise time(ms)
    Typ:20ms @230Vac Full Load
    Ripple/Noise(mVp-p)
    120mVp-p
    working Temperature (°C)
    -40°C - +65°C(refer derating curve)
    Storage Temperature(°C)
    -20°C - +60°C
    Humidity
    20% - 90% RH non condensing
    Over voltage Protection
    >115%-135% Rated output voltage
    Over load Protection
    >105%-150% Auto recovery
    Short circuit Protection
    Latched

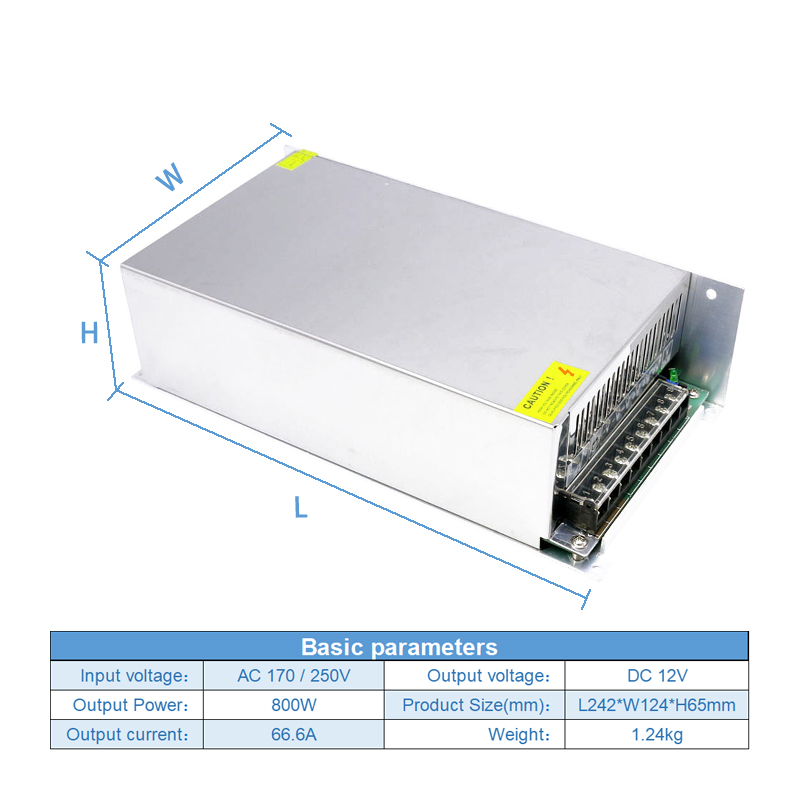

    Size L*W*H(cm)
    242*124*65mm
    Weight
    1240g
    Product Description
    Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V
    Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V
    Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V
    Aluminum Case 12V Switching Power Supply 800W With Fan 220V AC To DC 12V
    Specification
    item
    value
    Place of Origin
    China
    Guangdong
    Brand Name
    Megbox
    Model Number
    S-800-12
    Output Power
    100W
    Output Type
    Single
    Input Voltage
    AC170V-250V
    Output Voltage
    12V
    Output Frequency
    50-60Hz
    Output Current
    66.6A
    Product Name
    Chassis Switching Power Supply
    Application
    LED Lighting
    Warranty
    2 Years
    Certification
    CE
    Type
    AC DC Power Module Converter
    Efficiency
    84%
    Weight
    1.24kg
    Size
    L242*W124*H65mm
    Protection
    OCP OVP SCP OPP
    Protections
    Short Circuit Overtemp Overload Overvolt
