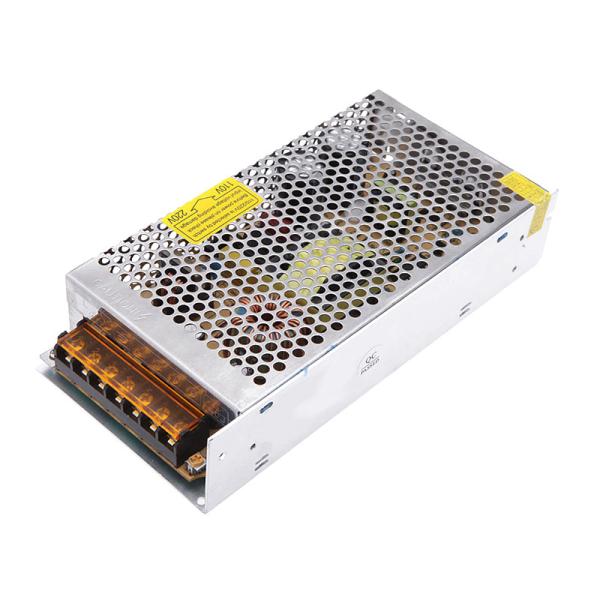

12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching

    Buy cheap 12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching from wholesalers

    Buy cheap 12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching from wholesalers
    • Buy cheap 12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching from wholesalers
    • Buy cheap 12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching from wholesalers

    12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching

    Ask Lasest Price
    Brand Name :
    Model Number : S-200-12
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching

    AC110V AC220V to DC 12V 16.7A 200W Regulated Switching Power Supply Transformer Adapter

    AC 110V 220V to DC 12V 16.7A 200W Universal Regulated Switching Power Transformer Adapter LED Driver for LED Light Bar, CCTV Camera System, Radio

    About this project:
    ◆ The output voltage is adjustable by 10%.
    ◆ Safety function: automatic overload cut-off, over-voltage cut-off, automatic thermal cut-off, short circuit protection.
    ◆ Voltage consistency: there is no voltage fluctuation during power-on, transmission, reception, and power-off.
    12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching
    Thickened metal shell
    The shell is made of high-quality metal material with good pressure resistance. Heat dissipation is fast. Durable and Corrosion Resistant ◆ The metal shell has more openings, and the heat dissipation is more efficient.
    Featured Components
    Selected high-quality components, sufficient power. Stable output, energy saving and safer
    Suitable for a variety of electronic devices
    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
    model
    S-200-12
    Dimensions
    L199*W98*H42mm
    Modulation
    Pulse width modulation (PWM) type
    Regulation voltage
    Adjustable 15%
    Input voltage range
    AC 100V~120V/200V~240V
    Output ripple noise
    120mVp-p
    Output Power
    200 (W)
    Output Voltage Accuracy
    98 (%)
    The output voltage
    12 (V)
    Output current
    0-16.7A (A)
    Scope of application
    LED lighting
    Cooling Fan Type
    automatic cooling
    Types of
    AC/DC power supply
    Transistor connection
    single-ended
    work efficiency
    95 (%)
    Operating temperature
    -20~+55(℃)
    working frequency
    50/60 (HZ)
    Reset method
    Power-off reset
    Load Regulation
    15 (%)
    Protection class
    IP20
    rated power
    200W
    Power phase number
    2
    Voltage regulation
    10 (%)
    certified product
    ce
    Easy to install and easy to use
    12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching
    Product Description
    12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching
    12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching
    12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching
    12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching
    12V 16.7A 200W Chassis Mount AC DC Power Supply Regulated Switching
    Specification
    item
    value
    Place of Origin
    China
    Guangdong
    Brand Name
    Megbox
    Model Number
    S-200-12
    Output Power
    200W
    Output Type
    Single
    Input Voltage
    AC110V-220V
    Output Voltage
    12V
    Output Frequency
    50-60Hz
    Output Current
    16.7
    Product Name
    Chassis Switching Power Supply
    Application
    LED Lighting
    Warranty
    2 Years
    Certification
    CE
    Type
    AC DC Power Module Converter
    Efficiency
    95%
    Weight
    0.55KG
    Size
    L199*W98*H42mm
    Protection
    OCP OVP SCP OPP
    Protections
    Short Circuit Overtemp Overload Overvolt
