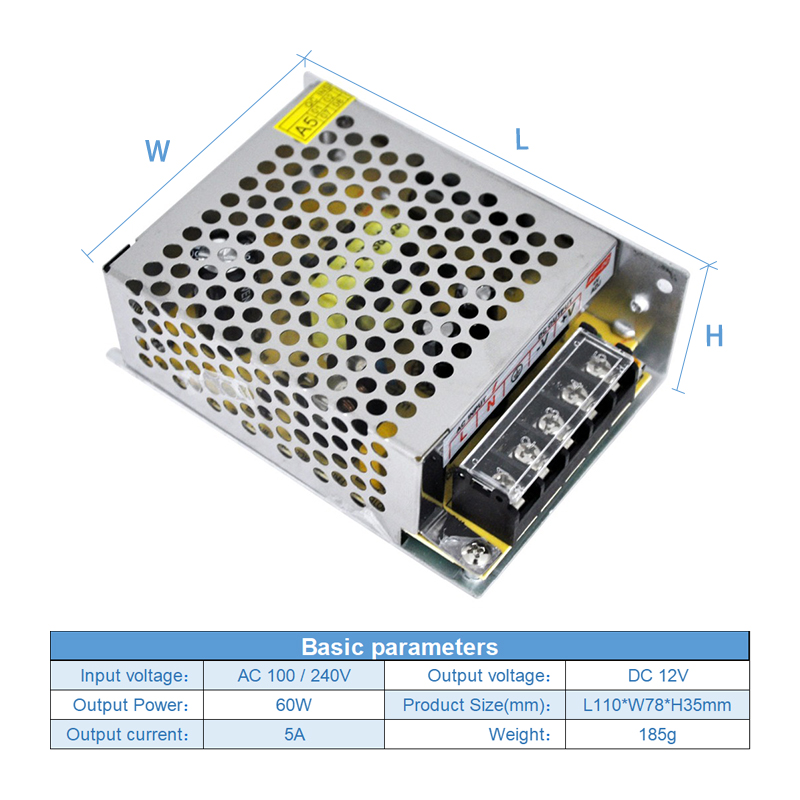

60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage

    Buy cheap 60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage from wholesalers

    Buy cheap 60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage from wholesalers
    • Buy cheap 60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage from wholesalers
    • Buy cheap 60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage from wholesalers

    60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage

    Ask Lasest Price
    Brand Name :
    Model Number : S-60-12
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage

    AC 100-240V to DC DC12V 60W 5A Indoor Cabinet Switching Power Supply LED Lighting Electronic Constant Voltage Regulator Driver

    1: The product has short circuit protection, overload protection and overvoltage protection.
    2: High quality, high efficiency, high service life, high reliability; low energy consumption, low output ripple, low operating temperature.
    Thickened metal shell
    ◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.
    ◆There are many cooling holes on the metal shell. Can quickly dissipate heat.
    Featured Components
    Selected high-quality components, sufficient power. Stable output, energy saving and safer
    Suitable for a variety of electronic devices
    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
    Easy to install and easy to use
    60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
    Model
    S-60-12
    AC input voltage range(V)
    AC 100V-240V
    Input current(A)
    2A/115VAC;1A/230VAC
    Frequency (Hz)
    50/60Hz
    Efficiency
    86%(230VACFull Load)
    Inrush current(A)
    cold start 20A/115V AC 40A/230VAC
    Leakage current(mA)
    <3.5mA/240VAC
    Output Voltage(V)
    +12VDC
    Voltage Regulation
    ±10%
    Output Current(A)
    5A
    Current Range (A)
    0-5A
    Rated Power(W)
    60W
    Start time, hold-up time(ms)
    300ms/230VAC 800ms,/115VAC at full load
    Rise time(ms)
    50ms at Full Load
    Ripple/Noise(MVP-p)
    120mVp-p
    working Temperature (°C)
    -10 centidegree to+60 centidegree
    Storage Temperature(°C)
    -20 centidegree to+85 centidegree
    Humidity
    20% to90%RH non condensing
    Over voltage Protection
    >115%-135% Rated output voltage
    Over load Protection
    >105%-150% Auto recovery
    Short circuit Protection
    Latched
    Size L*W*H(mm)
    110*78*35
    Weight
    185g
    Product Description
    60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
    60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
    60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
    60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
    Specification
    item
    value
    Place of Origin
    China
    Guangdong
    Brand Name
    Megbox
    Model Number
    S-60-12
    Output Power
    60W
    Output Type
    Single
    Input Voltage
    AC100V-240V
    Output Voltage
    12V
    Output Frequency
    50-60Hz
    Output Current
    5A
    Product Name
    Chassis Switching Power Supply
    Application
    LED Lighting
    Warranty
    2 Years
    Certification
    CE
    Type
    AC DC Power Module Converter
    Efficiency
    86%
    Weight
    185g
    Size
    L110*W78*H35(mm)
    Protection
    OCP OVP SCP OPP
    Protections
    Short Circuit Overtemp Overload Overvolt
