1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A

    Buy cheap 1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A from wholesalers

    Buy cheap 1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A from wholesalers
    • Buy cheap 1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A from wholesalers
    • Buy cheap 1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A from wholesalers

    1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A

    Ask Lasest Price
    Brand Name :
    Model Number : S-1200-12
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A

    1200W 12V DC Switching Power Supply Aluminum Case with Fan AC 220V to DC 12V Volt 100A Converter Transformer LED Driver

    DC 12V 100A 1200W Power Supply Adapter Transformer Switch AC 180V/240V to DC 12V 100Amp Switching Converter LED Driver for LED Strip Light CCTV Camera Security System

    1: The product has short circuit protection, overload protection and overvoltage protection.
    2: High quality, high efficiency, high service life, high reliability; low energy consumption, low output ripple, low operating temperature.
    1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A
    Thickened metal shell
    The shell is made of high-quality metal material, which is pressure-resistant, durable and rust-proof. Built-in cooling fan, effectively reduce the temperature
    Featured Components
    Selected high-quality components, sufficient power. Stable output, energy saving and safer
    Suitable for a variety of electronic devices
    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
    Model
    S-1200-12
    Transistor connection
    half bridge
    The output voltage
    12V (V)
    Output Voltage Accuracy
    98 (%)
    Output current
    0-100A (A)
    Input voltage range
    AC180-240V
    Installation method
    screw installation
    Regulation voltage
    10%
    Types of
    AC/DC power supply
    Input voltage
    AC 220V (V)
    work efficiency
    95 (%)
    Voltage regulation
    5 (%)
    working frequency
    50/60Hz (HZ)
    Specification
    12V-100A-1200W
    Protection class
    IP20
    rated power
    1200W
    Cooling Fan Type
    Free cooling
    Modulation
    Pulse width modulation (PWM) type
    Output Power
    1200W (W)
    Output ripple noise
    120mVp-p
    certified product
    ce ROHS

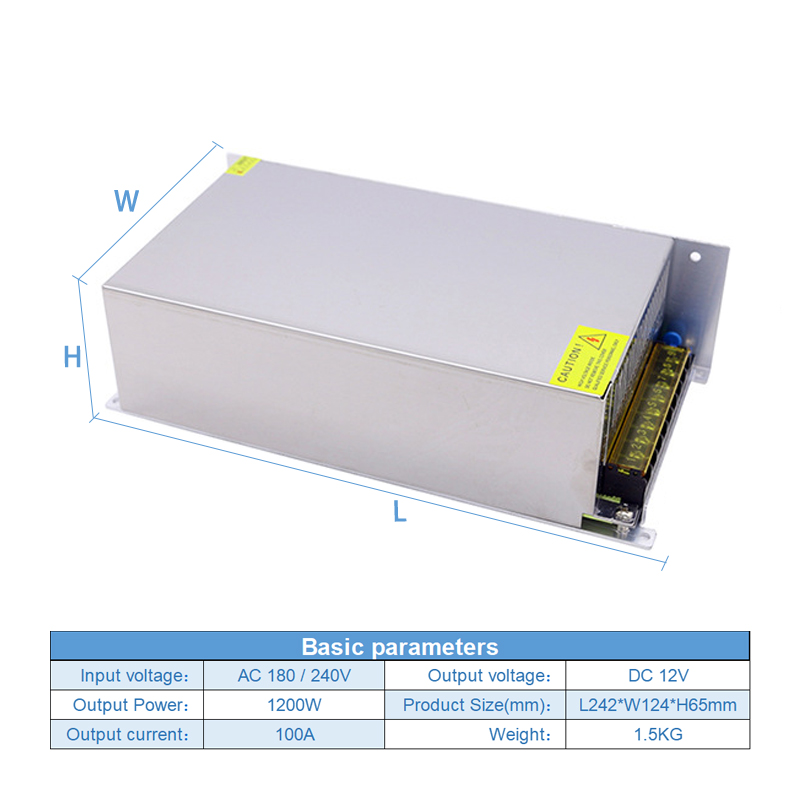

    Dimensions L*W*H(mm):
    L242*W124*H65mm
    series
    Indoor series
    Working temperature
    -40℃~65℃
    weight
    1.5KG
    Reset method
    self-healing
    Overvoltage protection
    Yes (>115%-135% rated output voltage)
    Overload protection
    yes (>105%-150% self-recovery)
    Short circuit protection
    Yes (lock protection)
    Easy to install and easy to use
    1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A
    Product Description
    1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A
    1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A
    1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A
    1200W DC Switching Power Supply 12V With Fan AC 220V To DC 12V Volt 100A
    Specification
    item
    value
    Place of Origin
    China
    Guangdong
    Brand Name
    Megbox
    Model Number
    S-1200-12
    Output Power
    1200W
    Output Type
    Single
    Input Voltage
    AC180V-240V
    Output Voltage
    12V
    Output Frequency
    50-60Hz
    Output Current
    100A
    Product Name
    Chassis Switching Power Supply
    Application
    LED Lighting
    Warranty
    2 Years
    Certification
    CE
    Type
    AC DC Power Module Converter
    Efficiency
    95%
    Weight
    1.5KG
    Size
    L242*W124*H65mm
    Protection
    OCP OVP SCP OPP
    Protections
    Short Circuit Overtemp Overload Overvolt
