Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution

    Buy cheap Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution from wholesalers

    Buy cheap Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution from wholesalers
    • Buy cheap Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution from wholesalers
    • Buy cheap Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution from wholesalers
    • Buy cheap Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution from wholesalers

    Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution

    Ask Lasest Price
    Brand Name :
    Certification : CE
    Price : negotiation
    Model Number : LED DMX512 decoder
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution

    Led Dmx Decoder Dmx512 Decoder Rgb Rgbw Strip Controller Stage Decoder Controller
    SMD512 decoder RGB RGBW strip light controller Stage decoder controller
    DMX512 decoder controller 8A*4 RGBW 8A*3 RGB stage light with engineering sub-controller
    Product introduction:
    The DMX decoder adopts advanced computer control chip, receives the DMX-512 standard digital control signal widely used in the world and converts it into a PWM controller signal to drive the LED; it can be connected with the DMX digital console, and the decoder can be added to continuously expand the output channel to Realize more dimming or various program change effects. When the decoder is not connected to the DMX console, the unit can be used as a synchronous controller, which can control multiple decoders and LED lights synchronously. Basic
    parameters:
    1. Power supply voltage: DC12-24V
    2. Output current:RGBW 4*8A;3*8A RGB
    3. The rated current of each channel is 8A/CH;
    4. Working temperature: -20-60°C

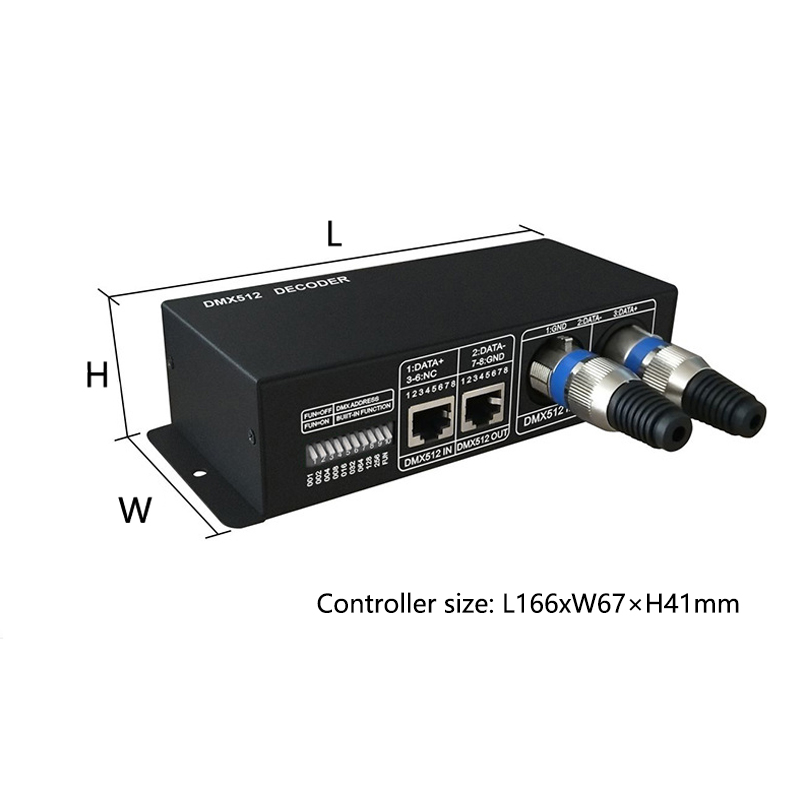

    5. Controller size: L166xW67×H41mm
    6. Packing box size: L176×W84×H50mm
    7. Channel: 3CH / 4CH
    8. DMX512 standard: DMX512/1990
    9. Accessories: A pair of XLR plugs

    Product Description:

    Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution
    Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution
    Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution
    Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution
    Specification
    item
    value
    Lighting solutions service
    Lighting and circuitry design, Project Installation
    Product Weight(kg)
    0.36
    Place of Origin
    China
    Guangdong
    Brand Name
    Megbox
    Type
    MANUAL SWITCH
    Max. Load Power
    768W
    Product name
    Led Dimmer
    Application
    RGBW Led Strip Lighting
    Input Voltage
    DC12-24V
    Output Current
    3CH/4CH
    Output signal
    Constant Voltage PWM Signal
    Accessories
    a pair of XLR plug
    Output power
    RGBW 12V<384,24V<768W; RGB 12V<288W, 24V<576W
    Working temperature
    20-60
    Input Signal
    DMX-512/1990 Digital Signal
    Certificates
    CE

    Quality Common Anode LED DMX Decoder Dmx512 RGB RGBW For DMX Lighting Solution for sale
