    Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control

    Ask Lasest Price
    Brand Name :
    Price : $12.85/pieces
    Model Number : LED DMX512 decoder
    Certification : CE
    • Product Details
    • Company Profile

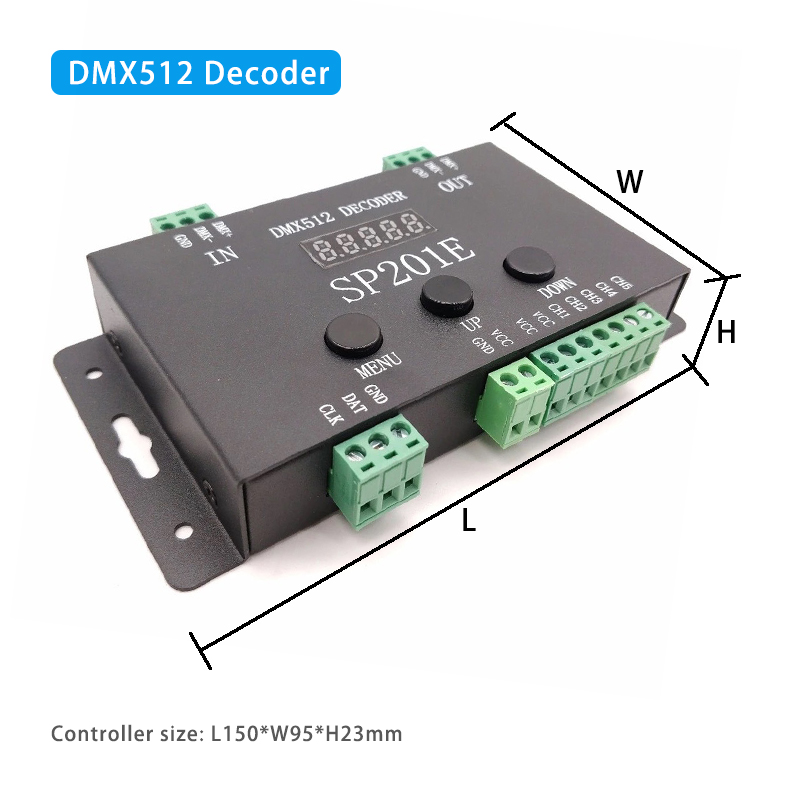

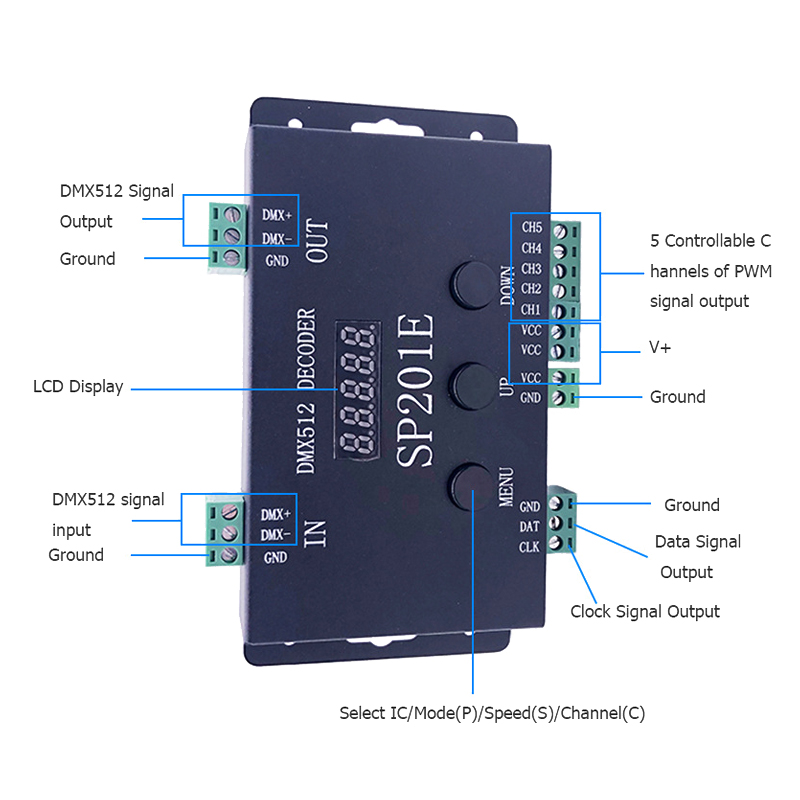

    Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control

    DMX512 Decoder Controller SP201E SPI Signal Addressable IC RGB Pixel 5 Channel Output

    Description - Text Version

    DC5V-24V DMX512 Decoder controller SP201E

    Product introduction:
    1. DC5-24V wide voltage power supply, the power supply has anti-reverse connection function;
    2. IC/self-contained mode/speed/decoding channel can be adjusted, and the digital tube can display it intuitively;
    3. Real-time automatic identification of DMX512 signal, plug and play, user-friendly operation;
    4. Decoding supports phantom lamps, colorful lamps, adjustable channels, and dual control at the same time;
    5. Single offline control or multiple synchronous cascading two working modes;
    6. It comes with 99 kinds of pattern effects, dazzling and agile;
    7. Each unit supports up to 2000 decoding channels;
    8. Power down to save user settings;

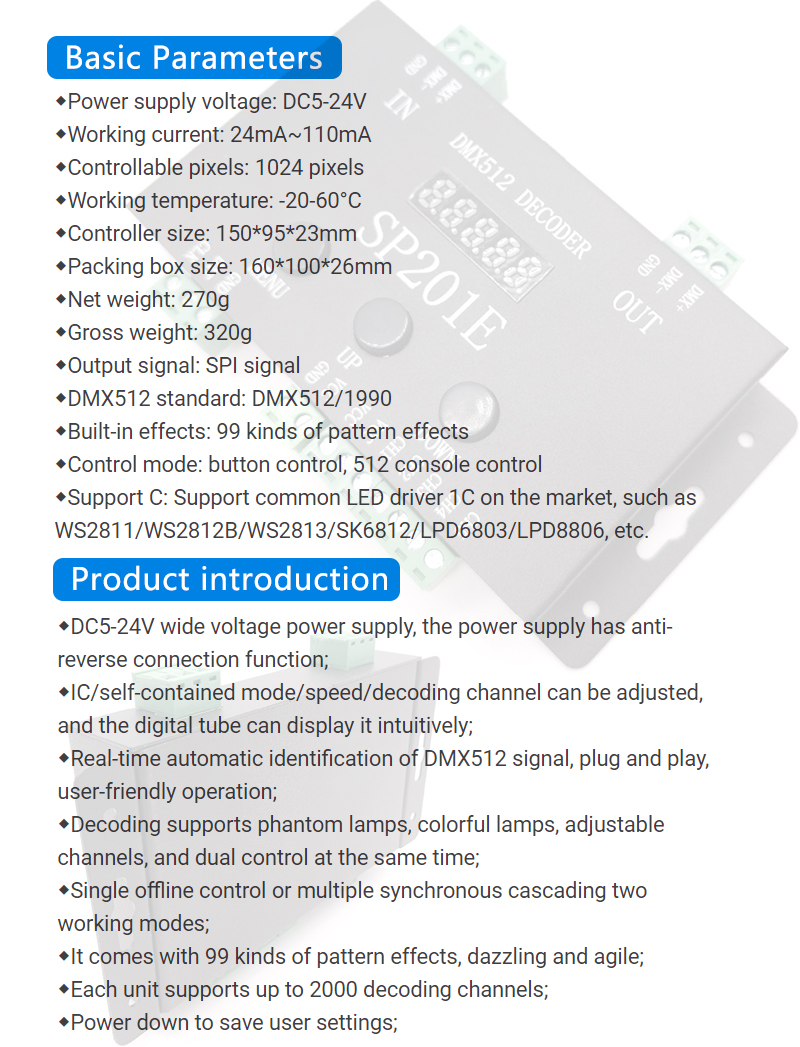

    Specification:
    item
    value
    Lighting solutions service
    Lighting and circuitry design, Project Installation
    Product Weight(kg)
    0.32
    Place of Origin
    China
    Guangdong
    Brand Name
    Lebeisenf
    Type
    DMX512 Decoder
    Max. Load Power
    1024 pixels
    Connection Mode
    common anode
    Product name
    SP201E
    Application
    DMX Lighting Solution
    Input Voltage
    DC5V-24V
    Output signal
    SPI Signal
    Control capacity
    1024 pixels
    Built-in pattern
    99 kinds
    Control mode
    Button control, 512 console control
    Working temperature
    20-60
    Support IC
    Support common LED driver ICs on the market
    Working current
    24mA-110mA
    Product Description
    Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control
    Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control
    Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control
    Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control
    Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control

    Product wiring application diagram

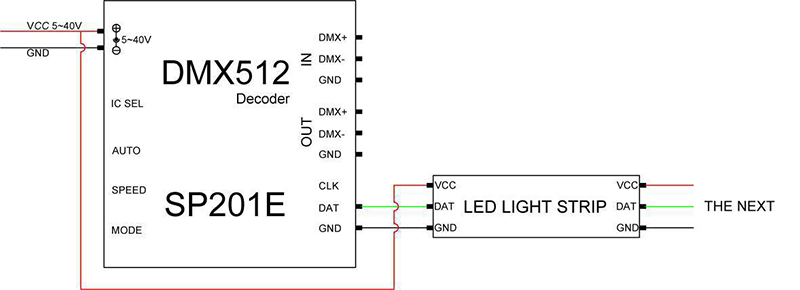

    1. The wiring diagram of a single decoder running its own pattern effect:
    Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control
    2. Wiring diagram of external DMX512 signal for a single decoder:
    Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control
    3. Wiring diagram for connecting multiple decoders in cascade with external DMX512 signals:
    Addressable 5 Channel DMX Decoder SP201E DMX512 SPI Signal With Button Control
