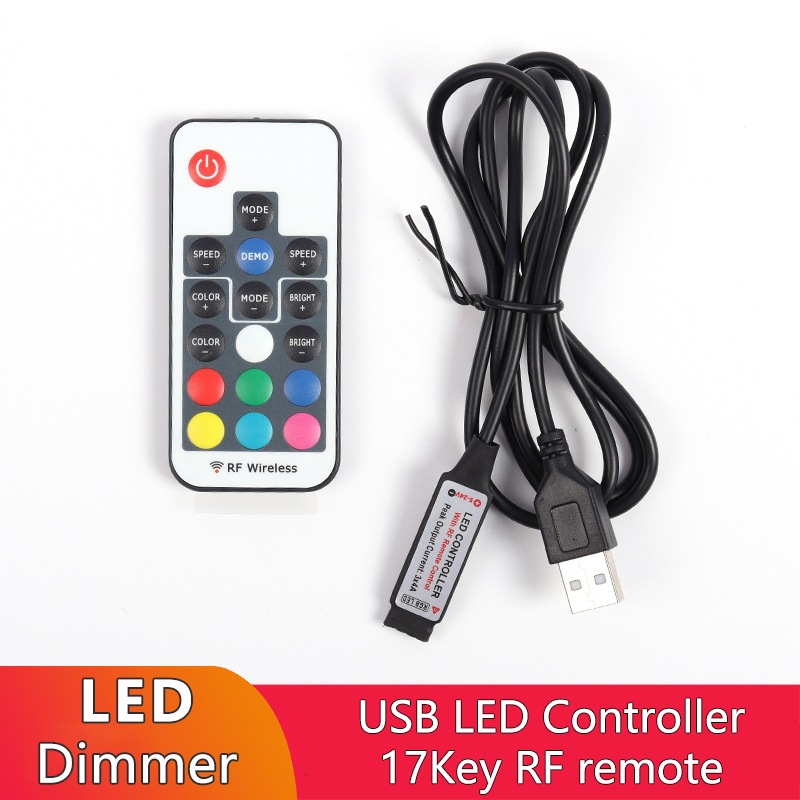

LED mini USB interface powered by 17 keys RF wireless remote control RGB light
Basic parameters:
•Product name: USB 17 key RF RGB controller
•Working temperature: -20-60°C
•Power supply mode: USB 5-24V
•Net weight: 40g
•Output: 3 channels
•Cable length: about 1000mm
•Product size: L40*W10*Н3 mm
•Remote control size: L85*W40*H6 mm
•Static power consumption: <1W
•Maximum load current <3*4A/CH
•Package size: L130*W90*H3mm
•Output power: 5V: <30W, 12V: <72W, 24V: <144W
Feature introduction:
USB 17-key RF RGB LED controller adopts advanced PWM control
technology, wireless signal control; USB interface power supply.
Used to control various lamps with LED as light source. For
example: point light source, flexible light bar, wall washer, glass
curtain wall light, etc.; It has the advantages of low price,
convenient wiring and simple use;
According to customer requirements, it can achieve static
five-level brightness adjustment, 20 static colors, and 19 dynamic
modes.
Speed, shutdown automatic memory and other functions.
