14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module

    Buy cheap 14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module from wholesalers

    Buy cheap 14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module from wholesalers
    • Buy cheap 14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module from wholesalers
    • Buy cheap 14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module from wholesalers

    14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module

    Ask Lasest Price
    Price : Negotiation
    Certification : CE
    Model Number : pixel controller
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    14 keys 3 pin LED Mini Controller , Sp002e Pixel Controller for LED light module

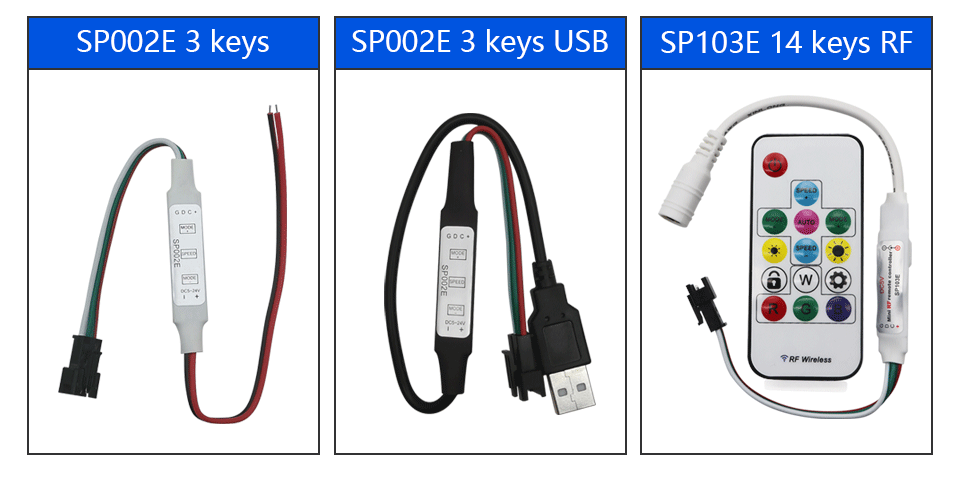

    DC5V-24V LED controller SP002E 3 keys SP103E 14 keys 3pin for WS2812B WS2811 WS2812 LED light module

    Peculiarities:

    1 Voltage: DC5V
    2 currents: <10mA

    3 temperature: -20 ~ 60C
    4 sizes: L29 * W12 * h3mm
    5 Weight: 0.03kg
    6 effects: 300 kinds of variations, covering market effects, 16 can program any combination and play automatically for all symphony controller modes;
    7 maximum number of control points: 2048 points
    8 remote control distances: 30 meters (14-key multi-function RF remote control)
    Notes: This controller had to work with DC5V WS2801 DC5V 2812B DC12V 2811 LED

    Package included:
    SP103E
    1x 14Key RF remote controller (battery not included)


    Features:
    1. Runs stably, easy to use and easy to connect;
    2. Can be configured to support almost any single-wire or two-wire LED-DRIVER-IC;
    3.With 76 kinds of patterns, which are bright and beautiful;
    4. It can drive up to 2048 pixels;

    Key functions:
    MODE+:Previous mode
    Speed:Speed adjustment key
    MODE-:Next mode
    MODE+ and MODE-:Press MODE+ and MODE- at the same time, then release them at the same time to enter the loop playback mode

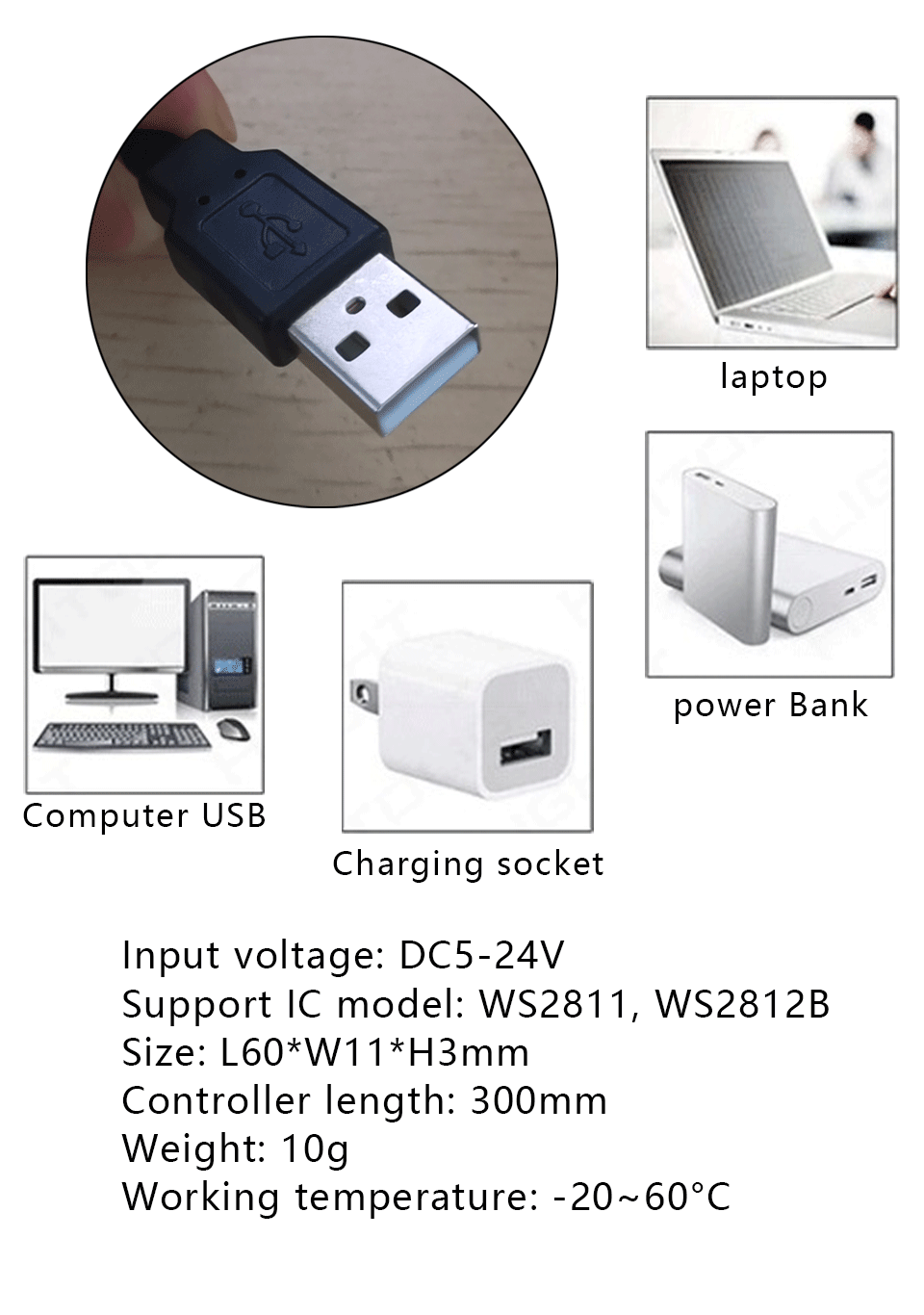

    Parameters:
    Working voltage: DC5V-24V
    Power consumption: less than 1W.
    Controller model: 2PIN wire / USB

    Package includes:
    SP002E
    1 mini controller with 3 buttons (LED power supply and power adapter are not included)
