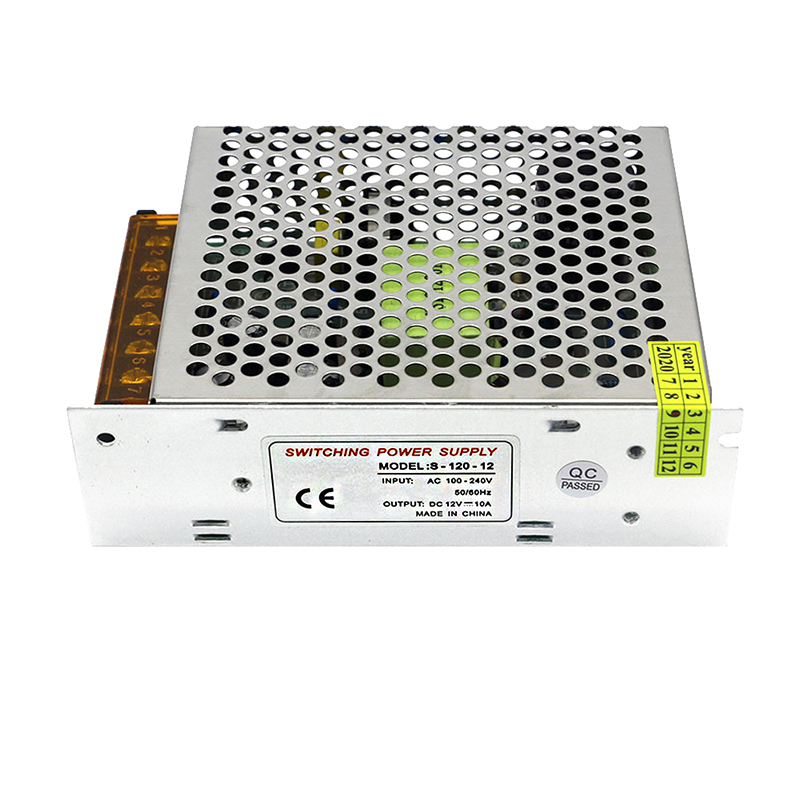

Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W

    Buy cheap Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W from wholesalers

    Buy cheap Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W from wholesalers
    • Buy cheap Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W from wholesalers
    • Buy cheap Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W from wholesalers

    Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W

    Ask Lasest Price
    Brand Name :
    Model Number : S-120-12
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W

    100-240V AC to DC 12V 10A 120W Regulated Switching Power Supply Aluminum Case Converter Transformer

    Constant voltage DC switching power supply 12V 10A 120W monitoring power supply industrial power supply led light bar power supply

    ◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
    ◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
    Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W
    Thickened metal shell
    ◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.
    ◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
    Featured Components
    High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;
    Suitable for a variety of electronic devices
    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
    Model
    S-100-12
    Regulation voltage
    10%
    weight
    0.34KG
    Output current
    0-10 (A)
    Voltage regulation
    10 (%)
    Output ripple noise
    120mVp-p
    rated power
    120W
    Output Power
    120W (W)
    The output voltage
    12V (V)
    Working temperature
    -40℃~65℃
    working frequency
    47-63 (HZ)
    work efficiency
    89 (%)
    Output Voltage Accuracy
    98 (%)
    Types of
    AC/DC power supply
    Input voltage
    AC100-240 (V)
    certified product
    ce ROHS
    Cooling Fan Type
    Free cooling
    Transistor connection
    half bridge
    series
    Indoor series
    Protection class
    IP20
    Dimensions
    L130*W98*H42(mm)
    Scope of application
    LED, security, industrial control, mechanical equipment
    Modulation
    Pulse width modulation (PWM) type
    Installation method
    screw installation
    Reset method
    self-healing
    Overload protection
    yes (>105%-150% self-recovery)
    Overvoltage protection
    Yes (>115%-135% rated output voltage)
    Short circuit protection
    Yes (lock protection)
    Easy to install and easy to use
    Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W
    Product Description
    Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W
    Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W
    Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W
    Aluminum Case Regulated Switch Power Supply 100V - 240V AC To DC 12V 10A 120W
    Specification
    item
    value
    Place of Origin
    China
    Guangdong
    Brand Name
    Megbox
    Model Number
    S-120-12
    Output Power
    120W
    Output Type
    Single
    Input Voltage
    AC100V-240V
    Output Voltage
    12V
    Output Frequency
    50-60Hz
    Output Current
    10A
    Product Name
    Chassis Switching Power Supply
    Application
    LED Lighting
    Warranty
    2 Years
    Certification
    CE
    Type
    AC DC Power Module Converter
    Efficiency
    89%
    Weight
    0.34KG
    Size
    L130*W98*H42
    Protection
    OCP OVP SCP OPP
    Protections
    Short Circuit Overtemp Overload Overvolt
