1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

    Buy cheap 1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A from wholesalers

    Buy cheap 1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A from wholesalers
    • Buy cheap 1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A from wholesalers
    • Buy cheap 1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A from wholesalers

    1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

    Ask Lasest Price
    Brand Name :
    Model Number : S-1500-12
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

    1500W high power AC200V 260V to DC 12V 125A indoor switching power supply LED lighting electronic appliance adapter


    Current Converter 200-260V AC to 12V DC 1500W 125A Indoor High Power Switching Power Supply

    ◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

    ◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

    1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

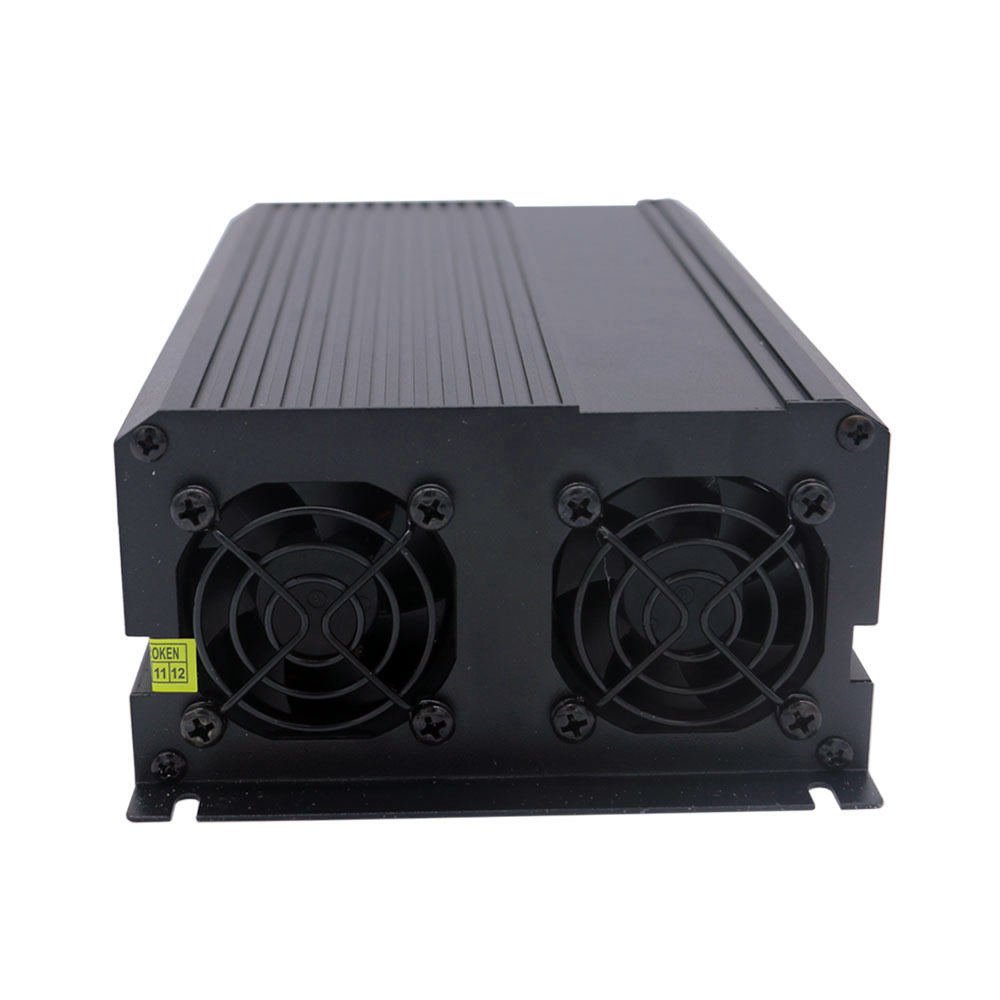

    Thickened metal shell

    ◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

    ◆The chassis has a built-in cooling module and dual-bearing cooling fans for more efficient heat dissipation.

    Featured Components

    High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;



    Suitable for a variety of electronic devices

    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

    Model

    S-1500-12

    Transistor connection

    half bridge

    The output voltage

    12V (V)

    Output Voltage Accuracy

    98 (%)

    Output current

    0-125A (A)

    Minimum number of packages

    1

    Input voltage range

    AC200-260V

    Installation method

    screw installation

    Regulation voltage

    10%

    Types of

    AC/DC power supply

    Efficiency

    87 (%)

    Voltage regulation

    5 (%)

    working frequency

    47-63 (HZ)

    Protection class

    IP20

    rated power

    1500W

    Cooling Fan Type

    Built-in dual fans

    certified product

    ce ROHS

    Dimensions

    247*134*70MM

    Working temperature

    -40℃~65℃

    weight

    2KG

    Reset method

    self-healing

    Overvoltage protection

    Yes (>115%-135% rated output voltage)

    Overload protection

    yes (>105%-150% self-recovery)

    Short circuit protection

    Yes (lock protection)

    Easy to install and easy to use

    1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

    Product Description

    1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

    1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

    1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

    1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

    1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

    Specification

    item

    value

    Place of Origin

    China


    Guangdong

    Brand Name

    Megbox

    Model Number

    S-1500-12

    Output Power

    1500W

    Output Type

    Single

    Input Voltage

    AC200V-260V

    Output Voltage

    12V

    Output Frequency

    50-60Hz

    Output Current

    125A

    Product Name

    Chassis Switching Power Supply

    Application

    LED Lighting

    Warranty

    2 Years

    Certification

    CE

    Type

    AC DC Power Module Converter

    Efficiency

    87%

    Weight

    2KG

    Size

    L247*W134*H70mm

    Protection

    OCP OVP SCP OPP

    Protections

    Short Circuit Overtemp Overload Overvolt
