    Constant Voltage Switch Power Supply 220V AC To DC 5V 20A 100W For LED Lighting

    Ask Lasest Price
    Brand Name :
    Model Number : S-100-5
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Constant Voltage Switch Power Supply 220V AC To DC 5V 20A 100W For LED Lighting

    220V AC To DC 5V 20A 100W Constant voltage Switching Power Supply LED Lighting Driver Transformer



    AC to DC 5V 100W 20A LED Strip Driver Transformer

    ◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

    ◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.


    Thickened metal shell

    ◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

    ◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

    Featured Components

    High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;


    Suitable for a variety of electronic devices

    Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

    Model

    S-100-5

    AC input voltage range(V)

    AC 110/220V

    Input current(A)

    2A/115VAC 1.2A/230VAC

    Frequency (Hz)

    50Hz-60Hz

    Efficiency

    90%

    Inrush current(A)

    Cold star 36A/230VAC

    Leakage current(mA)

    <2mA/240VAC

    Output Voltage(V)

    +5VDC

    Voltage Regulation

    +10%,-10%

    Output Current(A)

    20A

    Current Range (A)

    0-20A

    Rated Power(W)

    100W

    Start ,Rise time(ms)

    500ms,20ms/230VAC 500ms,20ms/115VAC at full load

    hold-up time(ms)

    30ms/230VAC 25ms/115VAC at full load

    Ripple/Noise(mVp-p)

    120mVp-p

    working Temperature (°C)

    0°C - +40°C(refer derating curve)

    Storage Temperature(°C)

    -20°C - +60°C

    Humidity

    20% - 90% RH non condensing

    Over voltage Protection

    >115%-135% Rated output voltage

    Over load Protection

    >105%-150% Auto recovery

    Short circuit Protection

    Latched

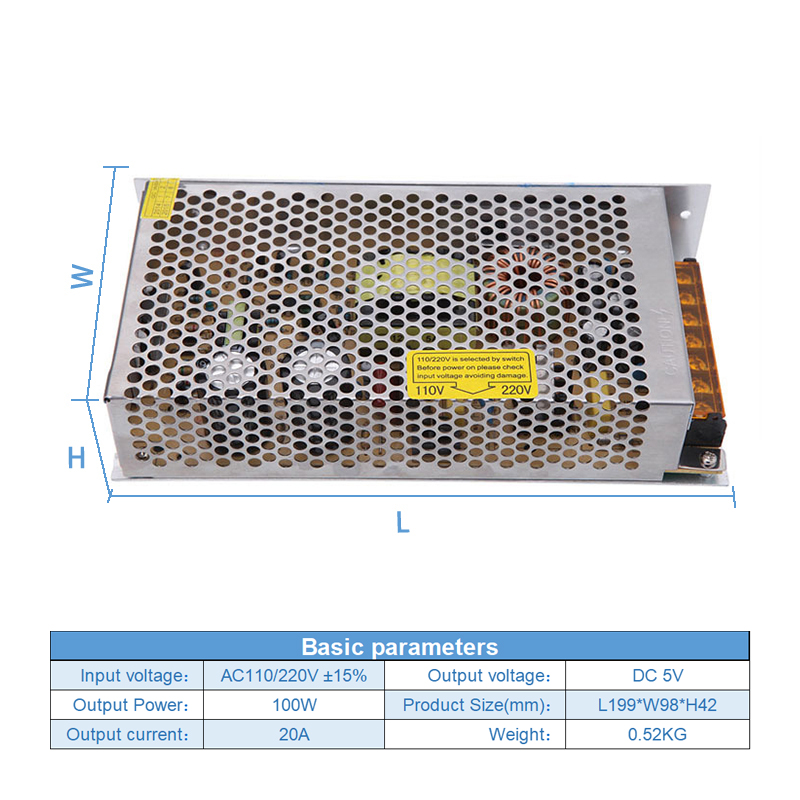

    Size L*W*H(mm)

    199*98*42

    Weight

    520g

    Easy to install and easy to use

    Constant Voltage Switch Power Supply 220V AC To DC 5V 20A 100W For LED Lighting

    Product Description

    Constant Voltage Switch Power Supply 220V AC To DC 5V 20A 100W For LED Lighting

    Constant Voltage Switch Power Supply 220V AC To DC 5V 20A 100W For LED Lighting

    Constant Voltage Switch Power Supply 220V AC To DC 5V 20A 100W For LED Lighting

    Constant Voltage Switch Power Supply 220V AC To DC 5V 20A 100W For LED Lighting

    Specification

    item

    value

    Place of Origin

    China


    Guangdong

    Brand Name

    Megbox

    Model Number

    S-100-5

    Output Power

    100W

    Output Type

    Single

    Input Voltage

    AC110/220V ±15%

    Output Voltage

    5V

    Output Frequency

    50-60Hz

    Output Current

    20A

    Product Name

    Chassis Switching Power Supply

    Application

    LED Lighting

    Warranty

    2 Years

    Certification

    CE

    Type

    AC DC Power Module Converter

    Efficiency

    90%

    Weight

    520g

    Size

    L199*W98*H42mm

    Protection

    OCP OVP SCP OPP

    Protections

    Short Circuit Overtemp Overload Overvolt
