    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    LED Single Color Dimming Controller 30A High Power With Square RF Full Touch Remote RGB Control Panel

    RF Full Touch Color Light Bar Dimmable Remote Control Panel LED 30A High Power Iron Shell RGB Dimmer Controller DC 5V 12V 24V 150W 360W 720W

    RGB LED Color Dimming Controller

    There are 27 different change modes to choose from, and the change speed can be adjusted. Adjust the brightness, switch and other functions of static colors.

    IRON CASE
    With high-quality iron shell, it has strong temperature resistance and sturdiness.

    Input and output are connected by bolts,
    Comes with a dust-proof and moisture-proof cover for easy installation. security

    • Supply voltage: DC5V-24V
    • Output current: <15A*2CH
    • Output power: 5V:5150W,12V:5360W, 24V:5720W
    • Working temperature: -20-60°C
    • Output: Two CMOS open-drain outputs
    • Static power consumption: <1W
    • Connection method: common anode
    • Controller dimensions: L85*W62*H35mm
    • Remote control dimensions: L86*W86*H12mm
    • Packing size: L94×W94×H42mm
    • Material: iron shell controller & PC control panel
    • Net weight: 140g
    • Gross weight: 145g


    item

    value

    Warranty(Year)

    1-Year

    Lighting solutions service

    Lighting and circuitry design, Onsite metering, Project Installation

    Product Weight(kg)

    0.14

    Place of Origin

    China


    Guangdong

    Brand Name

    Megbox

    Type

    Remote Control

    Max. Load Power

    720W

    Connection Mode

    common anode

    Type

    Full touch 86 panel

    Product name

    Led Dimmer

    Application

    Control Lights

    Voltage

    DC5-24V

    Function

    RF 0~100% Dimming

    Certificates

    CE FCC ROHS

    Output Current

    30A

    Keyword

    RGB Full Touch Panel

    Output power

    120-720W


    Product Description

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

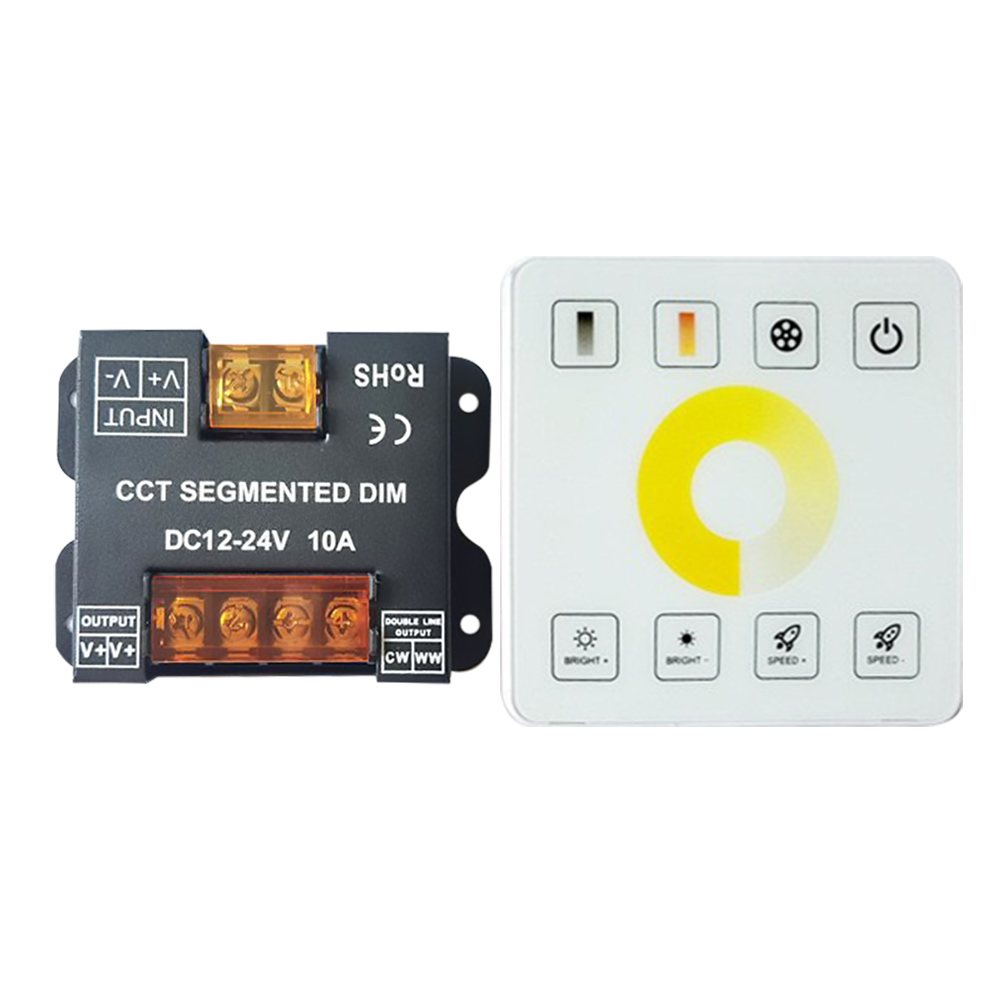

    CCT LED Dual Color Temperature Dimming Controller

    Compatible with two-wire light strips and three-wire light strips; you can choose dynamic effects such as gradual change, jump change, gradual light and dark, as well as transformer power off to switch static light according to different needs. Adjustable color temperature, brightness, speed.

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    DIM LED Single Color Dimming Controller

    You can choose dynamic effects such as gradient, jump, strobe, etc. according to your needs. The product can adjust brightness, speed, and delay shutdown; it provides two simultaneous outputs.

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel

    Single Color LED Dimming Controller , 30A High Power RGB Control Panel
