30A RF Single Color Remote Controller With Full Touch 86 Panel Type

    Buy cheap 30A RF Single Color Remote Controller With Full Touch 86 Panel Type from wholesalers

    Buy cheap 30A RF Single Color Remote Controller With Full Touch 86 Panel Type from wholesalers
    • Buy cheap 30A RF Single Color Remote Controller With Full Touch 86 Panel Type from wholesalers
    • Buy cheap 30A RF Single Color Remote Controller With Full Touch 86 Panel Type from wholesalers
    • Buy cheap 30A RF Single Color Remote Controller With Full Touch 86 Panel Type from wholesalers

    30A RF Single Color Remote Controller With Full Touch 86 Panel Type

    Ask Lasest Price
    Brand Name :
    Certification : CE
    Price : Negotiation
    Model Number : Touch Dimmer
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    30A RF Single Color Remote Controller With Full Touch 86 Panel Type

    LED Single Color Dimming Controller 30A High Power with Square RF Full Touch Remote Control Panel

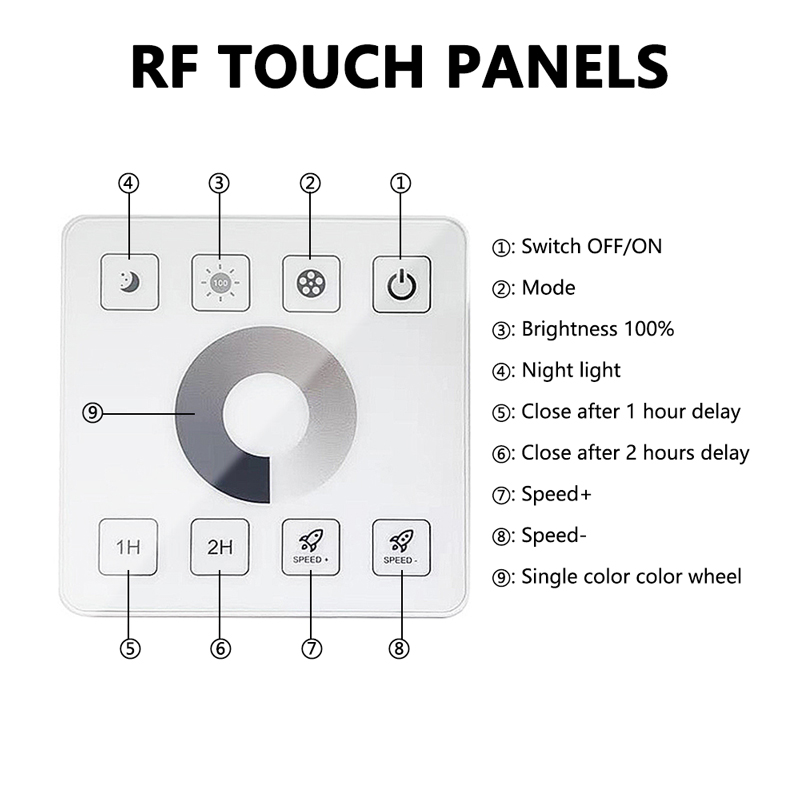

    Iron Shell LED Single Color Dimming Controller Wireless RF 86 Panel Full Touch Remote Control

    Gradient, jump, stroboscopic dynamic effects can be selected according to different needs. The product can adjust brightness, speed, delay shutdown and unique appearance design, realize dimming control simply, intuitively and remotely, and provide two-way synchronous output.

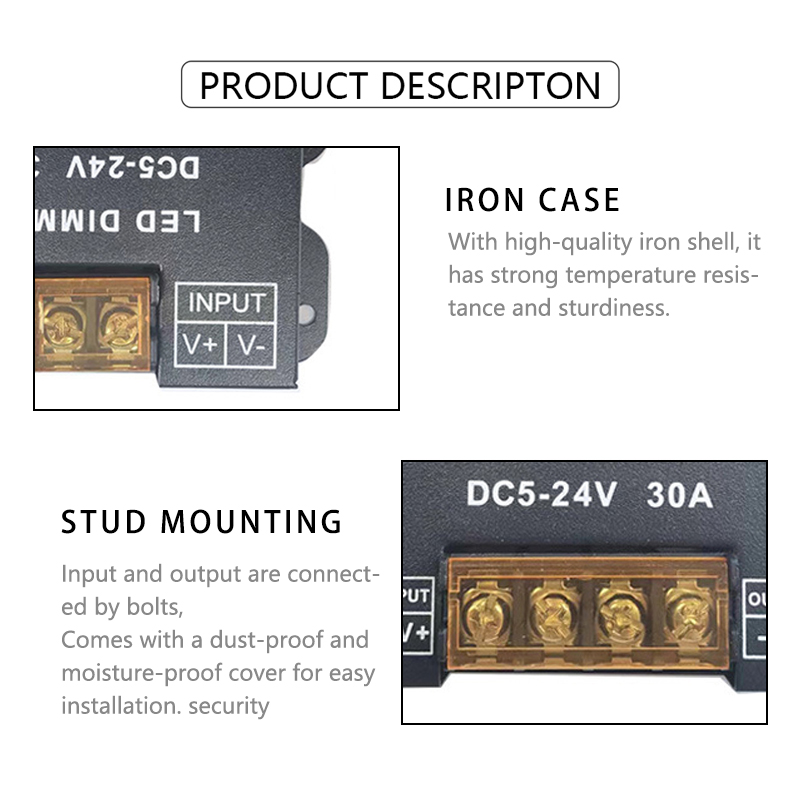

    IRON CASE
    With high-quality iron shell, it has strong temperature resistance and sturdiness.

    Input and output are connected by bolts,
    Comes with a dust-proof and moisture-proof cover for easy installation. security


    • Supply voltage: DC5V-24V
    • Output current: <15A*2CH
    • Output power: 5V:5150W,12V:5360W, 24V:5720W
    • Working temperature: -20-60°C
    • Output: Two CMOS open-drain outputs
    • Static power consumption: <1W
    • Connection method: common anode
    • Controller dimensions: L85*W62*H35mm
    • Remote control dimensions: L86*W86*H12mm
    • Packing size: L94×W94×H42mm
    • Material: iron shell controller & PC control panel
    • Net weight: 140g
    • Gross weight: 145g

    Specification
    item
    value
    Warranty(Year)
    1-Year
    Lighting solutions service
    Lighting and circuitry design, Onsite metering, Project Installation
    Product Weight(kg)
    0.14
    Place of Origin
    China
    Guangdong
    Brand Name
    Megbox
    Type
    Remote Control
    Max. Load Power
    720W
    Connection Mode
    common anode
    Type
    Full touch 86 panel
    Product name
    Led Dimmer
    Application
    Control Lights
    Voltage
    DC5-24V
    Function
    RF 0~100% Dimming
    Certificates
    CE FCC ROHS
    Output Current
    15A*2CH
    Keyword
    Single Color Full Touch Panel
    Output power
    5V:≤150W;12V:≤360W;24V:≤720W
    Material
    Iron
