Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode

    Buy cheap Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode from wholesalers

    Buy cheap Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode from wholesalers
    • Buy cheap Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode from wholesalers
    • Buy cheap Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode from wholesalers

    Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode

    Ask Lasest Price
    Brand Name :
    Price : Negotiation
    Certification : CE
    Model Number : RGB Controller
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

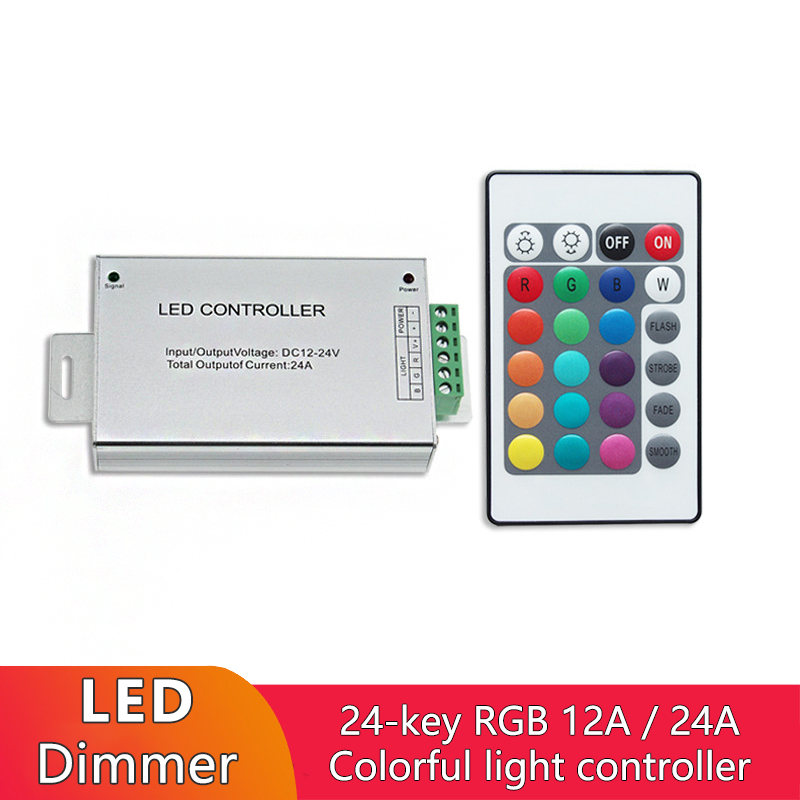

    Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode

    LED RGB Controller IR Remote 24 Key Aluminum Case DC12-24V 3CH For RGB Strip Light

    IR Remote 24 Key Aluminum Case LED RGB Controller DC12-24V 12A/24A 3CH For RGB Strip Light


    Basic parameters
    Product name: 24-key RGB aluminum shell controller
    Rated voltage: DC12-24V
    Output current: 12A / 24A
    Working temperature: -20~60°C
    Connection method: common anode
    Output: 3 circuits
    Transmitting and receiving frequency: 433MHZ
    Remote control size: L85*W50*H6mm
    Controller size: L100*W60*H20mm
    Weight: 126g


    Feature Description
    LED RGB controller is a general-purpose overall color-changing controller, using the current PWM (pulse width modulation) control technology,
    This series of controllers is light and beautiful, with a variety of changing modes, which can realize changing effects such as gradient, jump, strobe, etc. The full-color gradient effect is delicate and soft, without flickering, and you can also choose static monochrome, adjustable change speed, LED brightness, pause and other functions.
    Such controllers can be widely used to control RGB LED color lighting products.

    Specification
    item
    value
    Warranty(Year)
    1-Year
    Lighting solutions service
    Lighting and circuitry design
    Luminous Efficacy(lm/w)
    30
    Product Weight(kg)
    0.126
    Place of Origin
    China
    Guangdong
    Brand Name
    Megbox
    Type
    Remote Control
    Max. Load Power
    144W
    Connection Mode
    common anode
    Product name
    24-key RGB aluminum shell controller
    Input Voltage
    DC12V-DC24V
    Output Current
    12A/24A
    Working temperature
    20-60
    Application
    RGB Led Strip Lighting
    Output
    3 Circuits
    Remote control size
    L85*W50*H6mm
    Controller size
    L100*W60*H20mm

    Product Description

    Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode
    Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode
    Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode
    Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode
    Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode
    Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode
    Quality Aluminum Case 24 Key IR Remote Controller 3CH Common Anode Mode for sale
