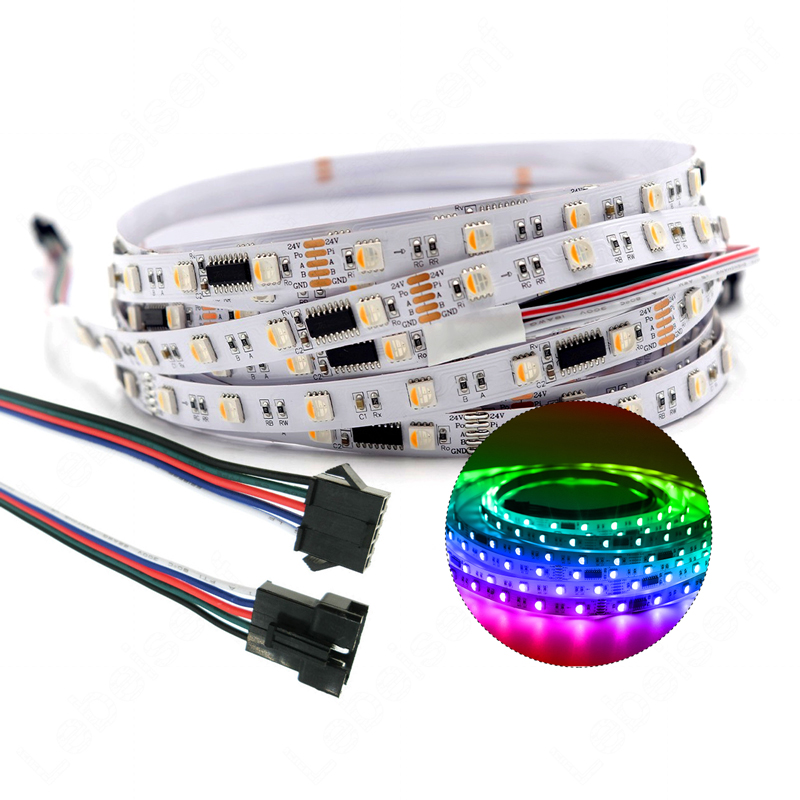

    Dmx512 LED Pixel Strip Light Dual Row 5050 Rgbw Rgbww 4 In 1 Full Color Programmable

    Ask Lasest Price
    Brand Name :
    Model Number : UCS512C4-5050-RGBW / RGBWW
    Certification : ce
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Dmx512 LED Pixel Strip Light Dual Row 5050 Rgbw Rgbww 4 In 1 Full Color Programmable

    Dmx512 Led Pixel Strip Light Dual Row 5050 Rgbw Rgbww 4 In 1 Full Color Programmable Light

    DMX512 LED Full Color Pixel Strip Light
    Product Description:

    1.DMX512 parallel protocol LED driver chip IC with 4 channels high precision co nstant current output.

    2. Compatible and expandable with 512 protocol signal

    3. Frequency within 200K-750K Adaptive decoding.

    4. Adopt A,B line online writing code and writing parameters, writing code and writing parameters are completely independent


    Product Specification:
    ●.Product Type: External 5050RGB DMX512 series magic color light bar
    ●.Strip model: UCS512C4-5050-4in1
    ●.IC model: UCS512C4
    ●.Operating voltage: DC 12V or 24V
    ●.Power :0.24W/LEDs
    ●.Board width:12MM or 20MM
    ●.Display gray level:256
    ●.Number of beads: 60 or 120LEDs/M
    ●.IC quantity: 1 IC with 6 or 12 beads (24V); 1 IC with 3 beads (12V)
    ●.Operating temperature:-25°C-80°C
    ●.Operating life:30000H
    ●.PCB board color: white board
    ●.Luminous color: full color / through the 512 controller can achieve any color arbitrary effect
    ●.Data transmission rate:800K/S
    ●.Waterproof level: bare board - not waterproof; drip glue - IP65; sleeve - IP67; potting - IP68(Customizable)
    Product Features:
    SOP-16 IC DMX512 protocol 5 Wire ,Programming write address,Dual Signal Breakpoint Continue Transmission
    ●.Packing: 5m/reel, reel fixed, anti-static bag

    Package List:
    DMX512 Signal LED Pixel Strip*1Roll(5m)
