RGB Full Color WS2812B LED Pixel Light Strip
Feature function:

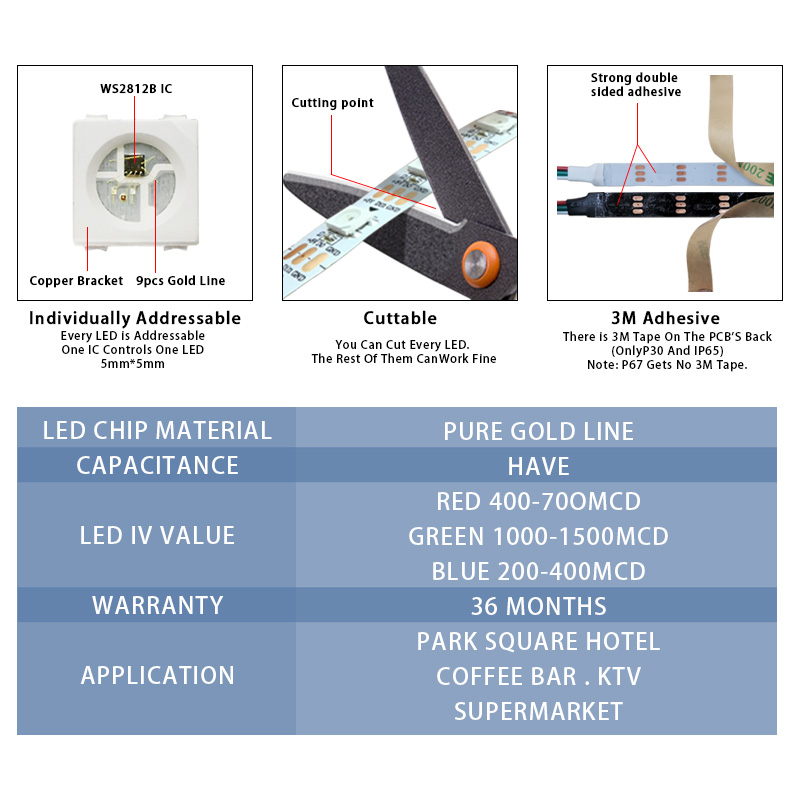

-Cuttable Every LED can be cut off, LED strip still working after
it is cut. Cut it to the length you just need. -Adhesive They(Only
IP30, IP65) have double sides adhesive tapes on the back.There is
no double side tape on IP67 , IP67 needs screws and clips to
install. You can paste IP30/IP65 on the bookcase, TV, wine cabinet,
ceiling, windowsill easily. -Colorful Red, Green, Blue. Dream full
color. curtain-up/ flow water/raindrop jump flash and so on
hundreds of lighting effect, you can also edit animation effect by
Coreldraw/Flash/LedEdit software. -Long life Life span: more than
50000hrs -Waterproof level Non-waterproof (IP30) Silicone coating
waterproof (IP65) Silicone coating sheathing waterproof (IP67)
Glue-Pouring Waterproof(IP68)
Product Specification:
1.Product Type:Built-in IC LED Pixel Strip -IC
2.type :WS2812B IC -Gray
3.level: 256 -View angle: 120° -
4.Input voltage: DC5V -
5.Color: full color 24-bit -
6.FPCB board color: Black/White -
7.LED strip width: IP30 IP65 :10mm -
8.LED strip width : IP67:12mm( include silicone sheathing)
9.Power:0.1W~0.3W/LED -
10.Standard Reel Length:5M/roll (16.4FT) -
11.Model: WS2812 strip 5050rgb chips -
12.Operating Temperature: -20 ~ +40°C -
13.Led Qty: 300LEDs/16.4ft 300 pixels/16.4ft -
14.Length x Widthx Height:IP30:5000mmx10mmx2mm IP65:5000mmx10mmx3mm
IP67:5000mmx12mmx3.85mm -
Waterproof level: IP30/IP65/IP67 -
Double Side Tape: IP30/IP65 . There is no double side tape on IP67.
-Light up 1 color(red or green or blue) 0.1W/LED . Light up 2
colors (red+green) 0.2W/LED , Light up 3 colors
(red+green+blue=mixed white) 0.3W/LED
Note:
Using 5VDC power supply. Higher than 5V will destroy it. If you
need more data of WS2812 led strip, we will send it to you. The
LEDs at the far end of the strip might be dimmer because of the
added resistance and voltage drop that occurs during the current
flows to that end of the strip. The solution is adding DC5V voltage
every 16.4ft or 32ft according to the actual situation .
Waterproof Level:

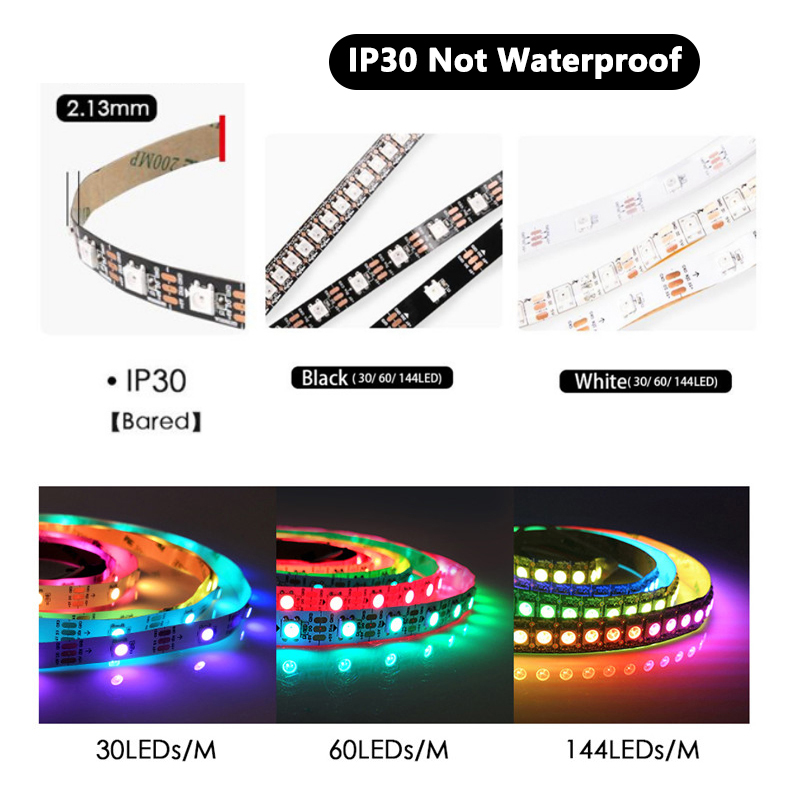

-IP30: Non-waterproof . Only work indoor .
-IP65: Silicone Coating Splash Proof .Dust prevention splash
proofing designs. Only work indoor.
-IP67: Sheating Waterproof. Dust prevention water proofing designs.
Can work outdoor but the 3 PIN connectors are non-waterproof.
-IP68:Glue-Pouring Waterproof.Dust prevention water proofing
designs. Can work underwater.3 PIN waterproof connector.
IP68 needs to be customized.
Package List:
1*5M WS2812 LED Flexible Pixel Strip
1*3 pin male connector
Power adapter or controller is not include
1. Why the end of LED strip looks like red or yellow when you light
up maximum brightness White Light ?
A1: It is better to add DC5V voltage every 5M(16.4FT), because the
LEDs at the far end of the strip might be dimmer due to the added
resistance and voltage drop that occurs as the current flows to
that end of the strip.
2. Why do I light up a few LEDs ?
A2: Please make sure you using the right power supply . For this
LED strip , it is DC5V .Please don't use DC12V power supply for it
. It will burn this LED strip .
3:The controller is defective . Please make sure the controller can
work fine
A3. What are the functions of the two extra wires on two ends ,one
is white ,one is red ?
4: They are using to connected the DC5V power supply when the LED
strip out of voltage . So we also call them voltage adding wires .
4. Can I connect them in series when I want to control 4 reels of
them ? A4: Yes , they can end to end connect many reels .
