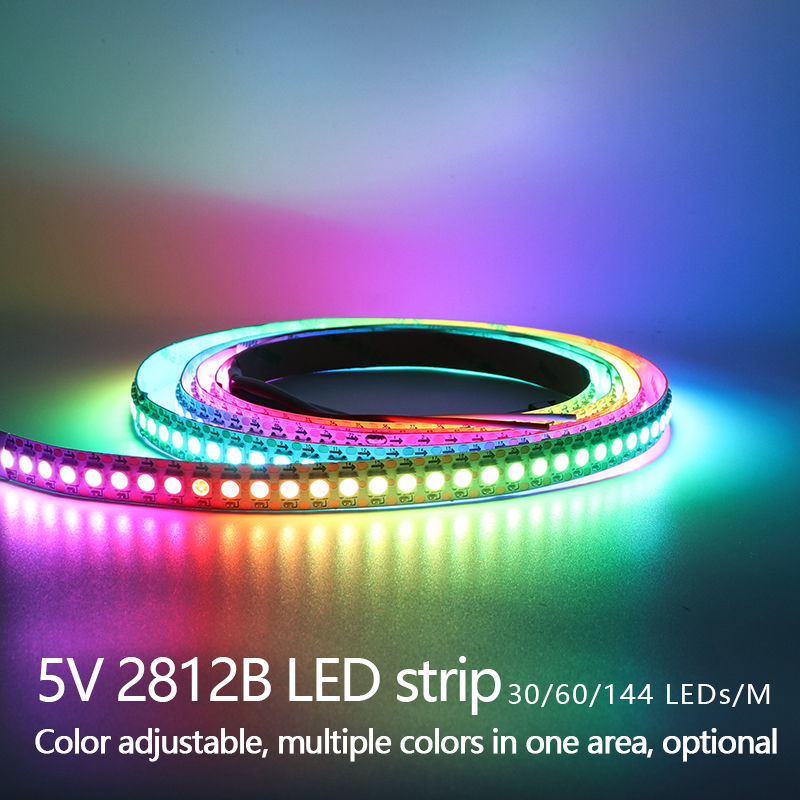

RGB Full Color WS2812B LED Pixel Light Strip
Note:
Using 5VDC power supply. Higher than 5V will destroy it. If you
need more data of WS2812 led strip, we will send it to you. The
LEDs at the far end of the strip might be dimmer because of the
added resistance and voltage drop that occurs during the current
flows to that end of the strip. The solution is adding DC5V voltage
every 16.4ft or 32ft according to the actual situation .
Feature function:
Cuttable Every LED can be cut off, LED strip still working after it
is cut. Cut it to the length you just need.
Adhesive They(Only IP30, IP65) have double sides adhesive tapes on
the back.There is no double side tape on IP67 , IP67 needs screws
and clips to install. You can paste IP30/IP65 on the bookcase, TV,
wine cabinet, ceiling, windowsill easily. -Colorful Red, Green,
Blue. Dream full color. curtain-up/ flow water/raindrop jump flash
and so on hundreds of lighting effect, you can also edit animation
effect by Coreldraw/Flash/LedEdit software. -Long life Life span:
more than 50000hrs -Waterproof level Non-waterproof (IP30) Silicone
coating waterproof (IP65) Silicone coating sheathing waterproof
(IP67) Glue-Pouring Waterproof(IP68)
Product Specification:
1.Product Type:Built-in IC LED Pixel Strip
2.IC type :WS2812B IC
3.Gray level: 256 -View angle: 120°
4.Input voltage: DC5V
5.Color: full color 24-bit
6.FPCB board color: Black/White
7.Power:0.1W~0.3W/LED
8.Standard Reel Length:5M/roll (16.4FT)
9.Model: WS2812 strip 5050rgb chips
10.Operating Temperature: -20 ~ +40°C
11.Led Qty: 300LEDs/16.4ft 300 pixels/16.4ft
12.Length x Widthx Height:IP30:5000mmx10mmx2mm IP65:5000mmx10mmx3mm
IP67:5000mmx12mmx3.85mm
13.Waterproof level: IP30/IP65/IP67
14.Double Side Tape: IP30/IP65 . There is no double side tape on
IP67.
15.Light up 1 color(red or green or blue) 0.1W/LED . Light up 2
colors (red+green) 0.2W/LED , Light up 3 colors
(red+green+blue=mixed white) 0.3W/LED
Waterproof Level:
-IP30: Non-waterproof . Only work indoor .
-IP65: Silicone Coating Splash Proof .Dust prevention splash
proofing designs. Only work indoor.
-IP67: Sheating Waterproof. Dust prevention water proofing designs.
Can work outdoor but the 3 PIN connectors are non-waterproof.
-IP68:Glue-Pouring Waterproof.Dust prevention water proofing
designs. Can work underwater.3 PIN waterproof connector. IP68 needs
to be customized.
Package List:
1*5M WS2812 LED Flexible Pixel Strip
1*3 pin male connector
Power adapter or controller is not included
